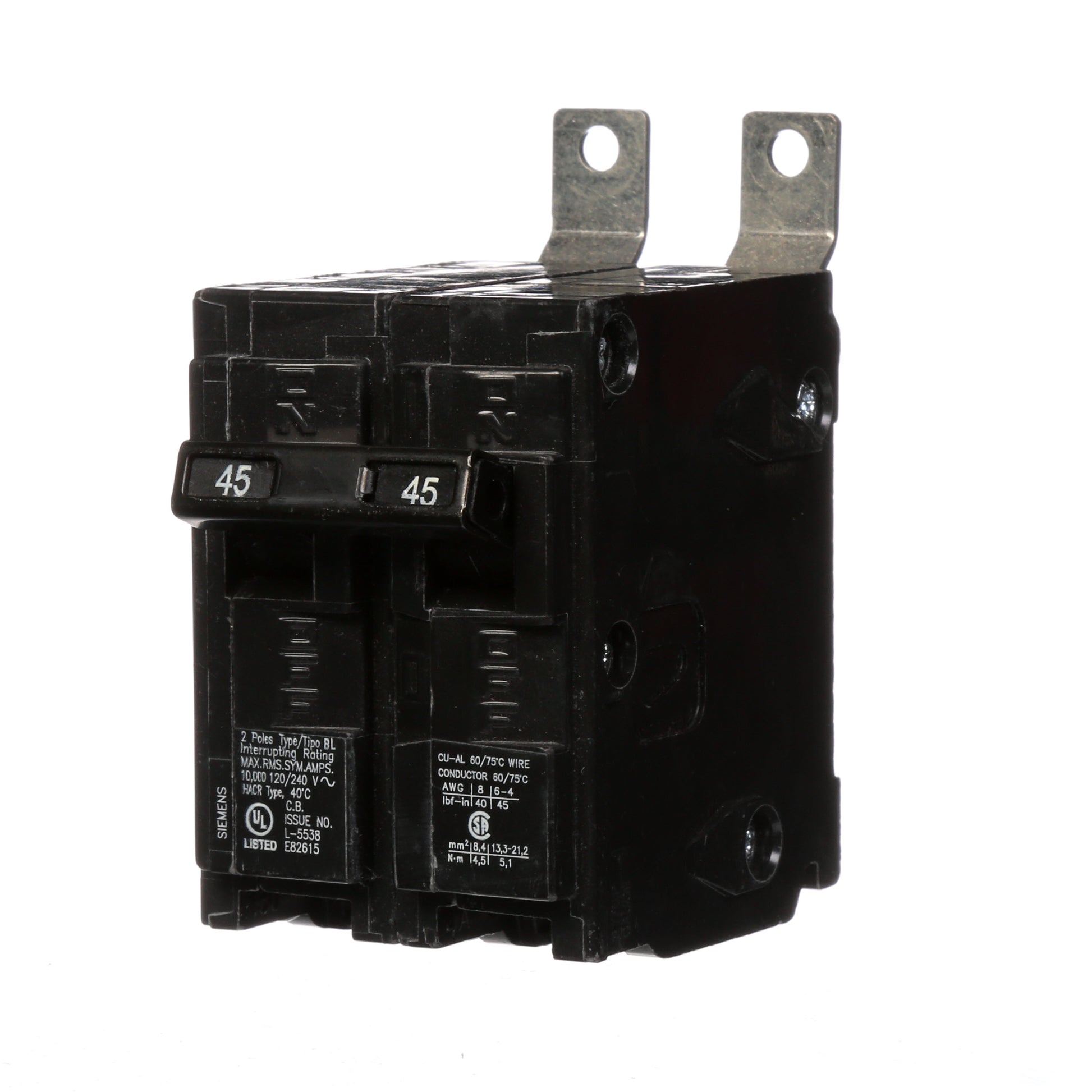

Siemens B245

B245 Product Description

Siemens Low Voltage Molded Case Circuit Breakers Panelboard Mounting 240V Circuit Breakers - Type BL, 2-Pole, 120/240VAC are Circuit Protection Molded Case Circuit Breakers. Type: BL Application: Electrical Distribution Standard: UL 489 Voltage Rating: 120/240V Am perage Rating: 45A Trip Range: Thermal Magnetic Interrupt Rating: 10 AIC Number Of Poles: 2P

SPECIFICATION:

Manufacturer:  Siemens
SKU: B245
UPC: 783643263581
Applications : Electrical Distribution
Connection Type : Bolt-On
Current : 45 Amp
Enclosure : N/A
Frame : N/A
Interrupt Rating : 10 AIC
Load Rating : N/A
Number of Poles : 2 Pole
Operating Temperature : N/A
Tc Connection : BOLT-ON
Trip Range : Thermal Magnetic
Trip Type : N/A
Type : BL
Voltage : 120/240 Volt
Weight : 0.665 lb
Depth : 3 in
Height : 3-1/2 Inch
Length : 2-1/2 Inch
Width : 4.000 in
Country of Origin : Mexico
