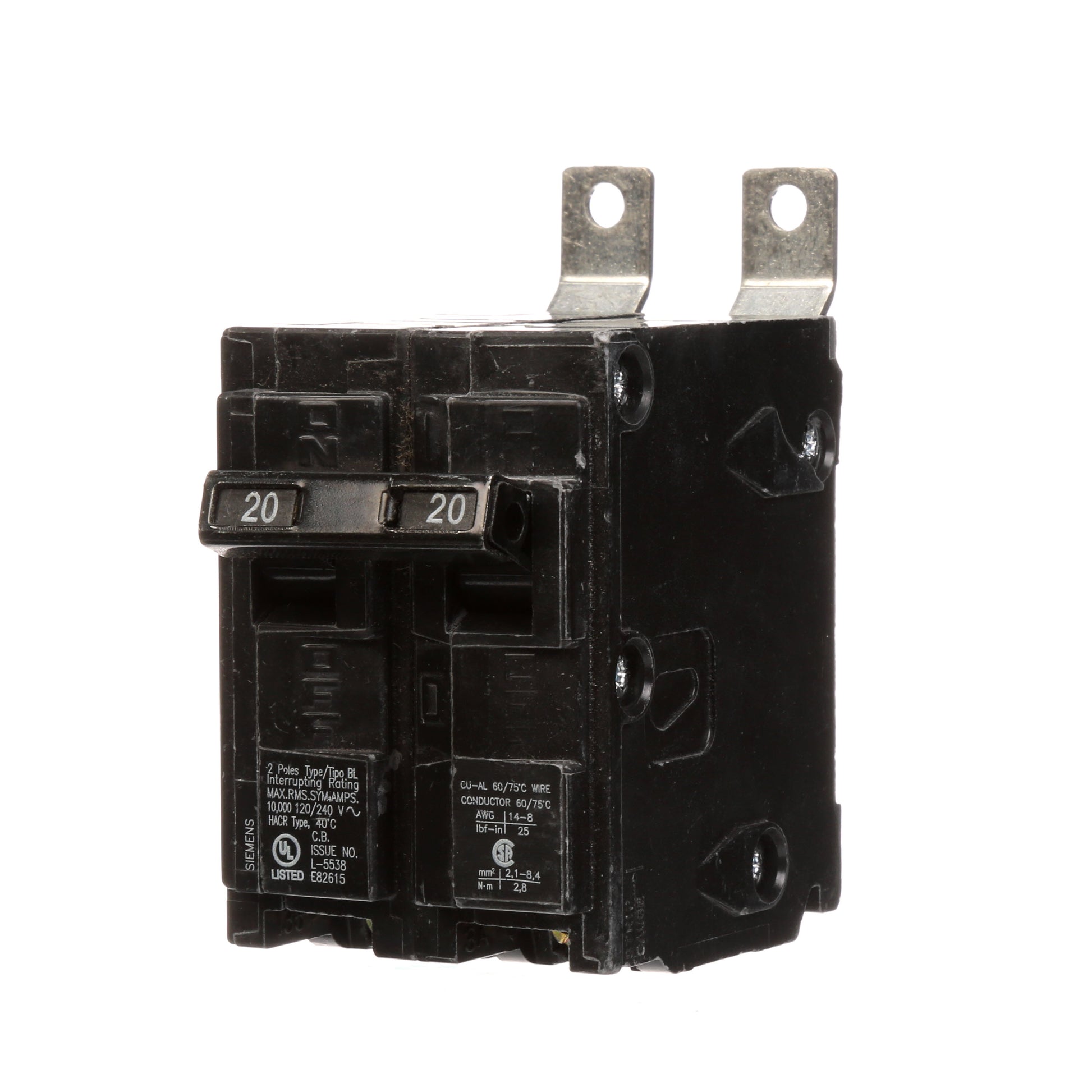

Siemens B220

B220 Product Description

Molded case circuit LOW TAB bolt-on breakers for panelboard mounting with insta-wire in 3 types of tripping speed BL=10KA, BLH=22KA, HBL=65KA. Available in versions 1 pole 120vac, 2 poles common trip 120/240vac, 2 poles common trip 240vac and 3 poles common trip 240vac.

Specifications:

Brand Siemens
Actuator Switch Position Knob
Amperage 20 Amp
Applications Electrical Distribution
Connection Type Bolt-On
Current 20 Amp
Enclosure N/A
Frame N/A
Interrupt Rating 10 kAIC
Load Rating N/A
Number of Phases -99999
Number of Poles 2 Pole
Operating Temperature N/A
Tc Connection BOLT-ON
Trip Range Thermal Magnetic
Trip Type Thermal Magnetic
Type BL
Voltage 120/240 Volt
Product UPC 78364326353
Depth 3 in
Height 3.7 Inch
Length 12.8 Inch
Width 4.600 in
