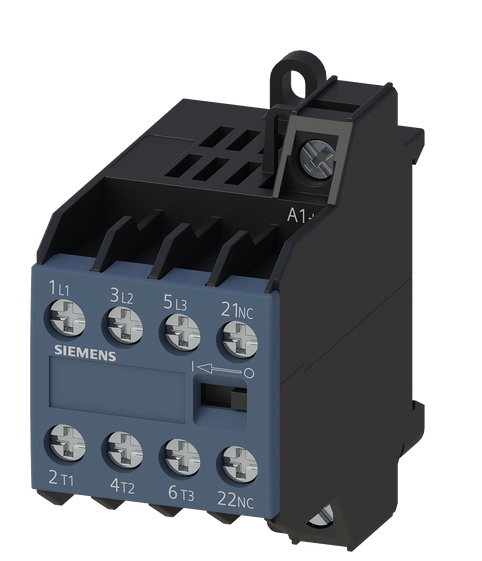

Siemens 3TG1001-0BB4
3TG1001-0BB4 Product Description
Power Relay, SIMIREL AC-1 Current = 20 amps AC-1 Power = 13 KW AC-2 and AC-3 Current=8.4 amps AC-2 and AC-3 Power = 4 KW 24VDC Screw,3NO+1NC
Specifications:
reference code acc. to IEC 81346-2 K
Substance Prohibitance (Date) 01.07.2006 00:00:00
ambient temperature during operation -25 ... +55 °C
number of poles 4
number of NO contacts for main contacts 3
number of NC contacts for main contacts 0
type of voltage DC
operational current
● at AC-1 at 400 V rated value 20 A
● at AC-3 at 400 V rated value 8.4 A
operating power
● at AC-3 at 400 V rated value 4 kW
control supply voltage at DC rated value 24 ... 24 V
number of NC contacts for auxiliary contacts 1
number of NO contacts for auxiliary contacts 0
number of CO contacts for auxiliary contacts 0
fastening method screw and snap-on mounting onto 35 mm standard mounting rail
● side-by-side mounting Yes
height 62 mm
width 36 mm
depth 60 mm
type of electrical connection
● for main current circuit screw-type terminals
● for auxiliary and control circuit screw-type terminals
