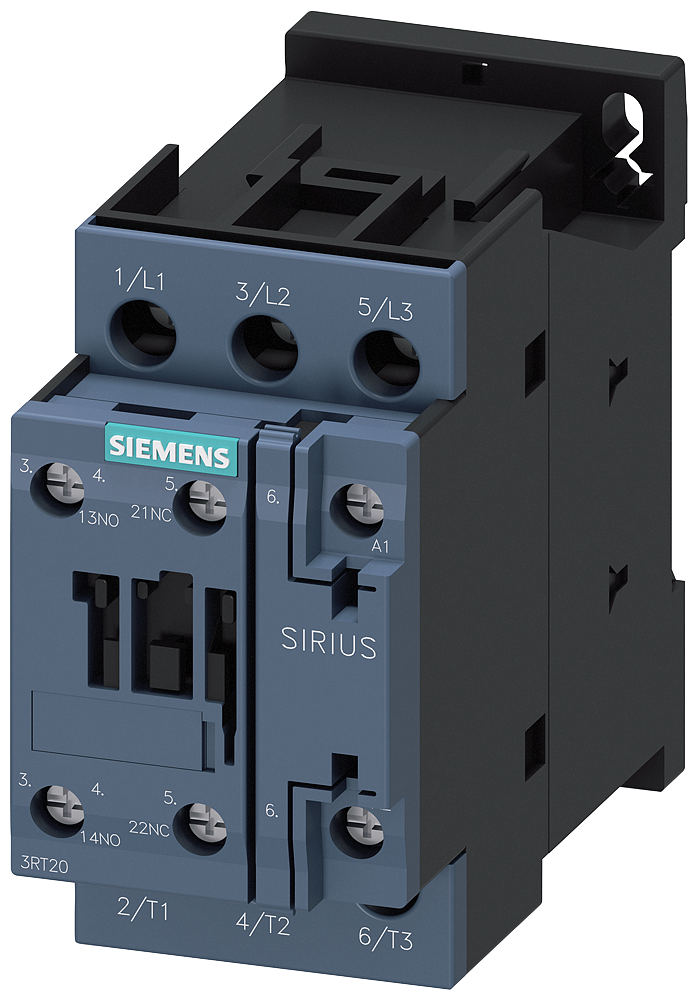

Siemens 3RT20231AV60

3RT20231AV60 Product Description

Cabinet units with 2 NO + 2 NC (terminal designations acc. to EN 50 012) are available as of size S0; the auxiliary switch block is removable.
Siemens SIRIUS Power Contactor, 480 VAC Coil, 9 A Maximum Load Current, 1 hp, 7-1/2 hp Coil Power Rating, 3 Poles, 60 Hz, 4 kW, Auxiliary Contact, 3NO, 2 Auxiliary Contacts, A600/Q600 Contact, Power Factor: 0.76, SZ 0, Screw Terminal, IP20, 10000000 Cycles Operating Cycles, -25 to 60 deg C Operating, DIN Rail/Snap-On/Threaded Mount, 85 mm H x 45 mm W x 97 mm D

SPECIFICATION:

Manufacturer:  Siemens
SKU: 3RT20231AV60
UPC: 040892920697
Coil Voltage : 480 VAC
Maximum Load Current : 9 A
Coil Power Rating : 1 hp, 7-1/2 hp
Number of Poles : 3
Frequency Rating : 60 Hz
Wattage : 4 kW
Contact Type : Auxiliary
Contact Configuration : 3NO
Number of Auxiliary Contacts : 2
Contact Rating : A600/Q600
Power Factor : 0.76
Size : SZ 0
Enclosure Type : IP20
Operating Cycles : 10000000 Cycles
Operating Temperature : -25 to 60 deg C
Mounting Type : DIN Rail/Snap-On/Threaded
Dimensions :  85 mm H x 45 mm W x 97 mm D
