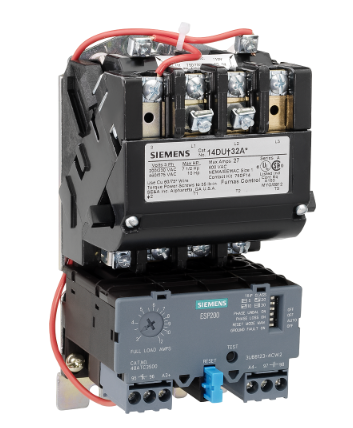

Siemens 14FUF32AF

14FUF32AF Product Description

Non-reversing motor starter Size 2 Three phase full voltage Solid-state overload relay OLRelay amp range 13-52a 110VAC 50HZ / 120VAC 60HZ coil Combination type No enclosure

Specifications:

Brand: Siemens
UPC: 783087817920
Amperage: 45 Amp
Coil Voltage: 110 VAC at 50 Hz, 120 VAC at 60 Hz
Contact Configuration: 3 NO Auxiliary
Enclosure: Open Type
Motor Power: 10 hp
Mounting Type: Surface
NEMA Size: 2
Number of Phases: 3 Phase
Number of Poles: 3 Pole
Operating Cycles: 10000000
Power Supply: 600 V
Reset Type: Auto/Manual
Size: NEMA 2
Standard: UL Listed File E14900,CSA Certified File LR6535
Temperature Rating: -20 to 40 degrees C
Trip Class: 5/10/20/30
Type: Full Voltage, Non-Reversing, Heavy Duty, Auto/Manual
Voltage: 120 Volt
