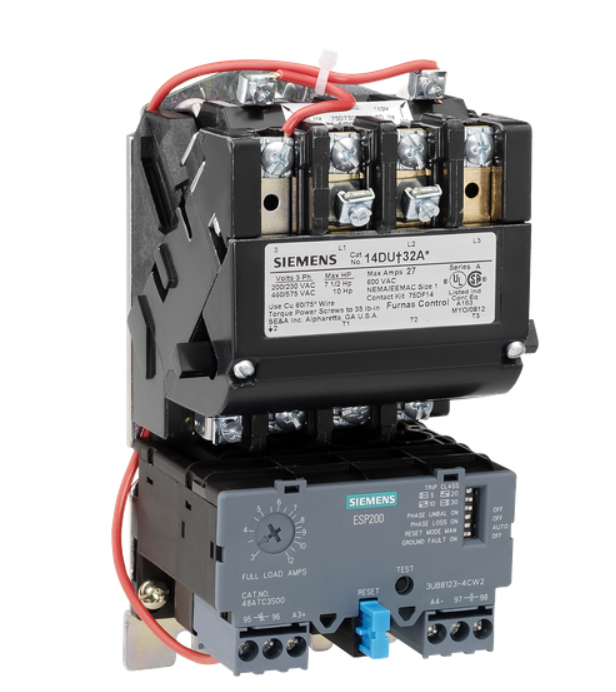

Siemens 14FUF32AA

14FUF32AA Product Description

Non-reversing motor starter Size 2 Three phase full voltage Solid-state overload relay OLRelay amp range 13-52a 110-120/220-240VAC 60HZ coil Combination type No enclosure

Specifications:

Amperage 45 Amp
Applications Single Phase and Polyphase Motors
Connection Type Screw
Control Voltage 208/230/460/575 VAC, 110 - 240 V
Enclosure Open
Enclosure Type Open
Motor Power 10 hp
Mounting Type Surface
NEMA Size 2
Number of Phases 3 Phase
Number of Poles 3 Pole
Operating Cycles 10000000
Operating Temperature -40 To 104 degrees F
Power Supply 600 V
Reset Type Manual, automatic, & remote
Size 2
Standard CUL,UL E14900,CSA
Tc Connection Screw
Trip Class 20
Type Manual, Automatic, Remote, FVNR
Voltage 600 Volt
Wattage 8.6 Watt
