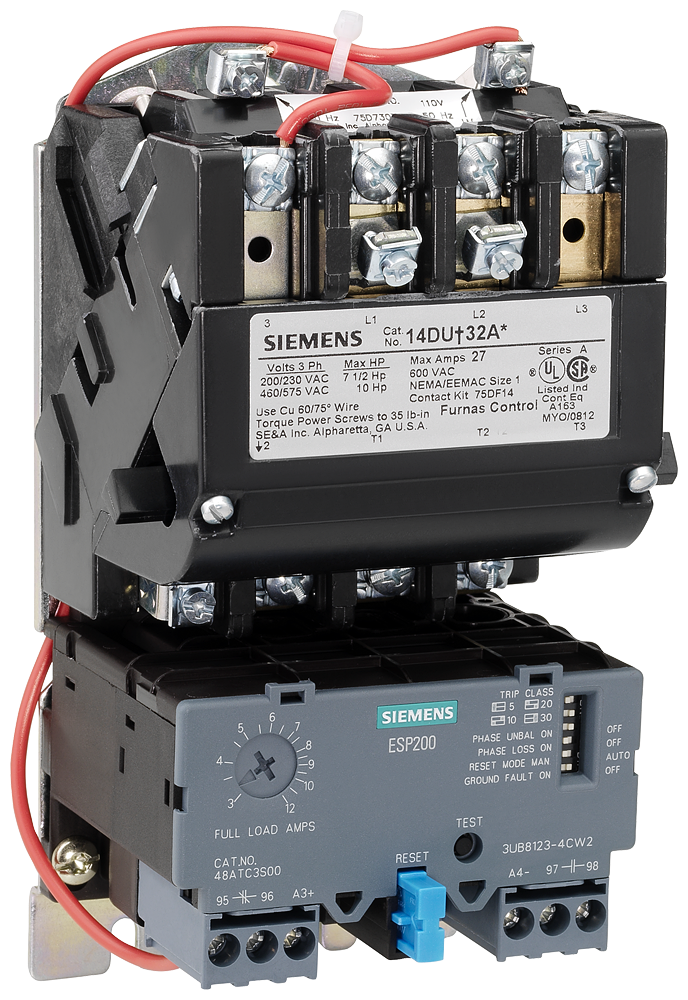

Siemens 14DUD32AA

14DUD32AA Product Description

Non-reversing motor starter, Size 1, Three phase full voltage, Solid-state overload relay, OLR amp range 5.5-22A, 110#120/220#240VAC 60Hz coil, Non-combination type, Enclosure type (open), No enclosure

SPECIFICATION:

Manufacturer:  Siemens
SKU: 14DUD32AA
UPC: 783087817814
Amperage : 27 Amp
Applications : Single phase and polyphase motors
Connection Type : Screw
Enclosure : Open
Motor Power : 10 hp
Mounting Type : Surface
Number of Phases : 3 Phase
Number of Poles ; 3 Pole
Operating Cycles : 10000000
Operating Temperature : -40 To 40 degrees C
Power Supply : 600 V
Reset Type : Manual, automatic, & remote
Size : 1
Standard : CSA,UL E14900,CUL
Tc Connection : Screw
Type : Non Reversing Motor Starter
Voltage : 600 Volt
Wattage : 8.6 Watt
Weight : 3.000 lb
Height : 5.6 Inch
Length : 10 Inch
Width : 8.200 in
Country of Origin : Mexico
