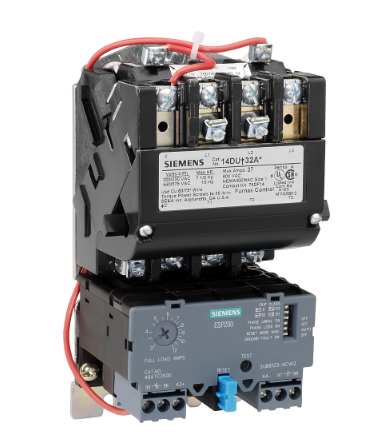

Siemens 14DUC32AA

14DUC32AA Product Description

Non-reversing motor starter, Size 1, Three phase full voltage, Solid-state overload relay, OLR amp range 3-12A, 110#120/220#240VAC 60Hz coil, Non-combination type, Enclosure type (open), No enclosure

Specifications:

Brand: Siemens
UPC: 783087817791
Amperage: 27 Amp
Applications: Single phase and polyphase motors
Connection Type: Screw
Enclosure: Open
Motor Power: 2 hp
Mounting Type: Surface
Number of Phases: 3 Phase
Number of Poles: 3 Pole
Operating Cycles: 10000000
Operating Temperature: -40 To 104 degrees F
Power Supply: 600 V
Reset Type: Manual, automatic, & remote
Size: 1
Standard: CUL,UL E14900,CSA
Tc Connection: Screw
Type: Non Reversing Motor Starter
Voltage: 600 Volt
Wattage: 8.6 Watt

Height: 5.7 Inch
Length: 10.1 Inch
Width: 8.200 in
