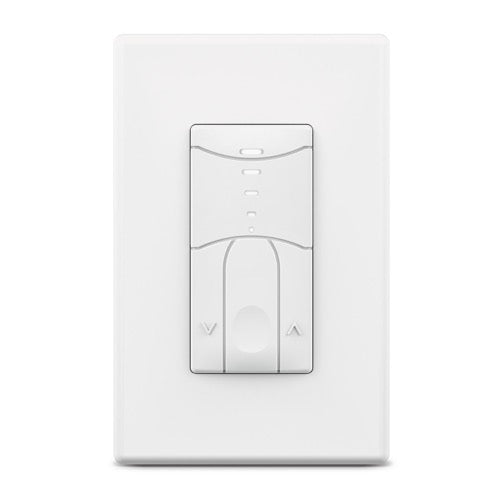

SensorWorx SWX-823-GY

SWX-823-GY Product Description

The SensorWorx line voltage 0-10 volt dimmer switches provide a stylish solution for spaces where manual dimming control is required. Designed with contractors in mind, the unit is significantly shallower than typical dimmers, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral connection. For dimming adjustment, intuitive raise and lower buttons are present in addition to the on/off button. Five vertically stacked LEDs are provided to indicate the current dimming level. Configurable dimming parameters include High/Low Trims, Turn on Levels, and Curve Types. This dimmer also matches the SensorWorx family of wall switch occupancy sensors and 0-10V dimming wall switch sensors.

Specifications:

Brand: SensorWorx
Part Number: SWX-823-GY
Switch Type: Button
Input Voltage: 120-277V
Min Operating Temp: 32 Degrees F
Dimmable: 0-10V
Special Features: B.A.A. Compliant
Made in USA: Yes
Color: Gray

Features:

Accommodates neutral (3-wire) and no-neutral (2-wire) installation
Electronically timed switching ensures long relay life
Works both standalone and with 3-way switches
Meets NEC 404.2(c) and 404.22 guidelines regarding powering over ground and current leakage
Enclosure is 25-40% shallower than other dimmers (less than 1” depth into wallbox)
Self-grounding mounting strap
Modern look and intuitive easy-tap buttons for on/off, raise, and lower
Settings are adjustable without removing cover plate
5 LED dimming level indication
Configurable dimming parameters including high/low trims, turn on levels, and curve type
Blue locator LED when lights are offline
