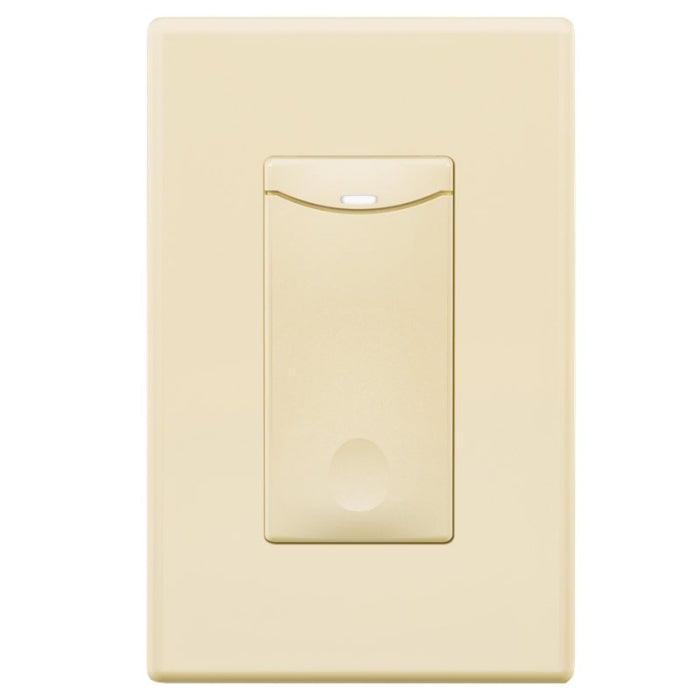

SensorWorx SWX-801-LA

SWX-801-LA Product Description

The SensorWorx low voltage decorator wall switch provides an attractive companion wall station for a low voltage sensor system. Many spaces now require by code (e.g., ASHRAE 90.1, IECC, Title-24) manual on, partial-on, or full range dimming user operation in addition to an occupancy sensor providing automatic off control. The simplest way of achieving this is by adding a low voltage wall station that interfaces with the power pack controlling the rooms lighting. Adding a switch to a low voltage sensor system also enables users to override a space’s lighting off if necessary. Functioning as a momentary switch, this one button wall station is intuitive to use and provides pleasant tactile feedback. Visually, the unit matches the SensorWorx line of wall switch sensors, ensuring a consistent style across multiple spaces on a project. Additionally, the single button switch has an integrated locator LED with multiple color and intensity settings.
The SensorWorx low voltage decorator wall station functions as a momentary switch with a pulse length of 250 msec. Typically, it is utilized along with any SensorWorx power pack with the auxiliary switch input option (e.g. model SWX-900-AX). Using a four-conductor low voltage wire (typically 18 AWG), low voltage power, common, and relay status is wired from the power pack to the switch. The switch output is then wired back to the power pack’s auxiliary switch input. For applications requiring Vacancy (e.g., Manual On) operation, the switch signals the power pack to turn on lighting after the unit’s button is pressed. To achieve multi-way switching, two or more single button units can be wired in parallel.

Specifications:

Brand: SensorWorx
Part Number: SWX-801-LA
Switch Type: Button
Min Operating Temp: -10 Degrees F
Special Features: B.A.A. Compliant
Made in USA: Yes
Diameter: 1.68"
Height: 2.74"
Color: Light Almond

Features:

5-24 VDC operation
Decorator style fits common wall plates (not included)
Less than 1” depth in wall
Multiway switching capable (e.g., 3-way, 4-way)
Intuitive operation
LED location aid
Matches styling of SWX wall switch sensor
