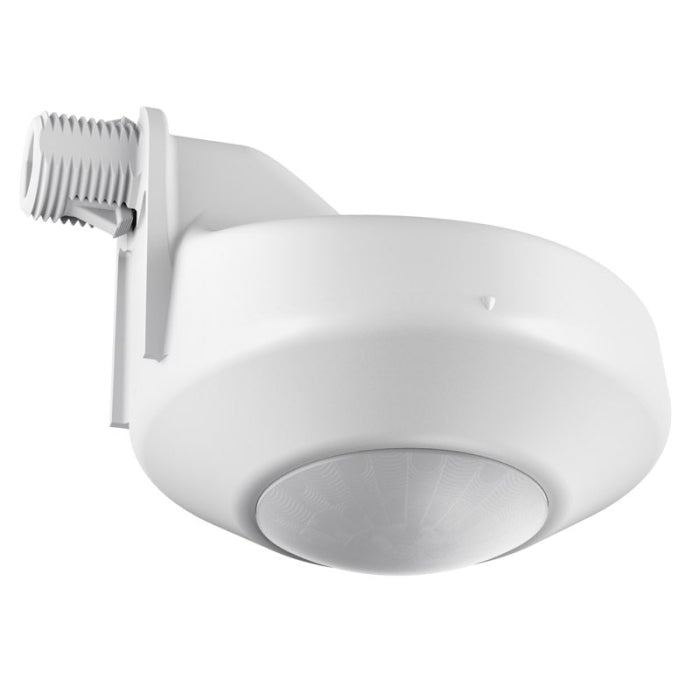

SensorWorx SWX-511-NL

SWX-511-NL Product Description

SensorWorx fixture mount occupancy sensor series is an excellent solution for high bay and industrial lighting control. With its universal lens that provides excellent range and density, this sensor removes the need to classify an application as low bay, high bay, or aisleway. Additionally, integrated tabs on its chase stem reduces installation time and fuss by firmly attaching to a fixture via a standard knockout. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance. Daylight detection also dims or turns off controlled lighting according to the ambient lights levels present in the space.
Sensors with an integrated photocell will turn lights on/off depending on the amount of ambient light detected. This operation makes them ideal for lighting near skylights, windows, or large bay doors.
0-10V dimmable fixtures can be controlled with a high/low/off sequence of operation by adding the High/Low option (HL). With this mode, the sensors will drop the lighting level to a low setting after the occupancy time delay expires. Then, after a second time delay, the sensor will shut the fixture off completely. Alternatively, leaving the sensor’s relay disconnected will cause the fixture to stay at the full dim setting (but never turn completely off) for the duration of the unoccupied period.
To enhance nighttime safety in facilities equipped with 0-10V dimmable fixtures, a Night-light operational mode (NL option) is available on sensors equipped with a photocell. In this mode, fixtures will be dimmed and then turned completely off during periods with sufficient daylight. However, during periods with insufficient daylight (i.e. at night) lights are held at a dimmed level during unoccupied periods.

Specifications:

Brand: SensorWorx
Part Number: SWX-511-NL
Occupancy Sensor Type: Passive Infrared (PIR),Photocell
Input Voltage: 120-277V
Detection Zone: 360 Degrees
Min Operating Temp: -10 Degrees F
Dimmable: 0-10V
Special Features: B.A.A. Compliant
Made in USA: Yes
Diameter: 4"
Height: 3"
Color: White

Features:

Dimming output enables configurable high/low/off operational modes
Universal lens works for high bay, low bay, and aisleway applications
Greater detection range and density than leading highbay 360° and aisleway sensors
Digital passive infrared (PIR) detection
This model equipped with night light operational mode
Snap-In chase stem makes installation quick
Integrated bracket drops sensor below bottom of fixture
Electronically timed switching designed for LED fixture control
Convenient test mode and adjustable time delays

About SENSORWORX:

SENSORWORX is a new brand of lighting controls that is redefining the occupancy sensor category. At the core of this claim is the incorporation of key innovations in three areas: Technology, Convenience, and Manufacturing Quality.

SENSORWORX products are designed, produced, and sold by BLP Technologies, Inc. of Wallingford, Connecticut. Founded in 2017 by engineers with decades of experience in lighting controls, the team behind SENSORWORX has an unmatched resume of bringing high quality and innovative products to the lighting and building control marketplace. With particular expertise in occupancy sensing, BLP Technologies is uniquely qualified to make the SENSORWORX brand the new standard of quality and technology excellence.
