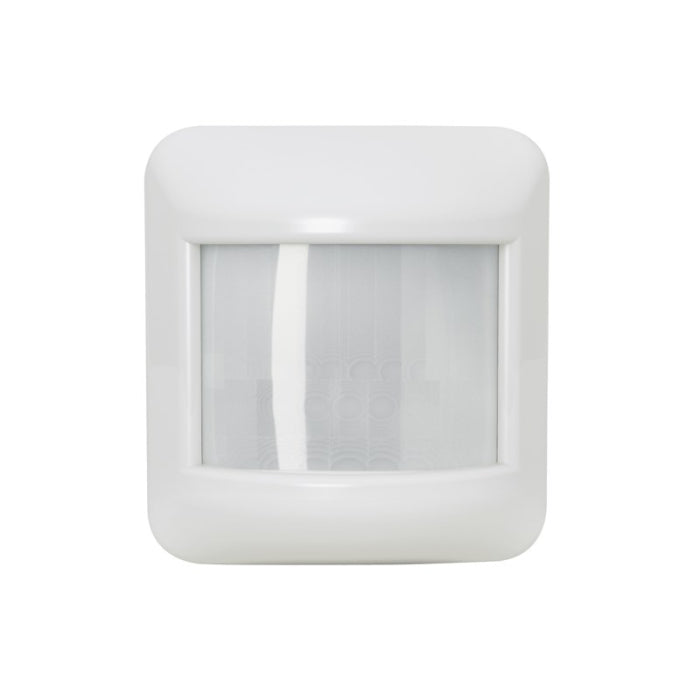

SensorWorx SWX-412-1-AR

SWX-412-1-AR Product Description

SensorWorx wall mount occupancy sensors enable mounting to a wall, corner, junction box, or conduit. This flexibility reduces contractor installation time and provides a secure and clean finished appearance. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.

PIR + daylight detection: sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified the sensor signals a connected power/relay pack to switch on the connected lighting. Additionally, daylight detection will turn off controlled lighting whenever there is sufficient ambient light in the space.

A single sensor may provide sufficient coverage in many spaces, however, multiple low voltage sensors can be easily wired together to provide improved coverage for large or irregular shaped spaces.

Specifications:

Manufacturer: SensorWorx
Occupancy Sensor Type: Passive Infrared (PIR), Daylight Harvesting
Manufacturer Part Number: SWX-412-1-AR
Input Voltage: 12V, 12-24V, 24V
Color: White
Detection Zone: 180 Degrees
Sensor Coverage: 100 Linear Ft
Min Operating Temp: -10 Degrees F
Special Features: B.A.A. Compliant
Width: 2.75"
Height: 2.9"

Features:

• Digital passive infrared (PIR) detection
• Ambient light override (photocell)
• Compact size and matte finish
• Five contractor friendly mounting methods
• Mounting stem attachment with integrated hole saw
• Convenient test mode and adjustable time delays
