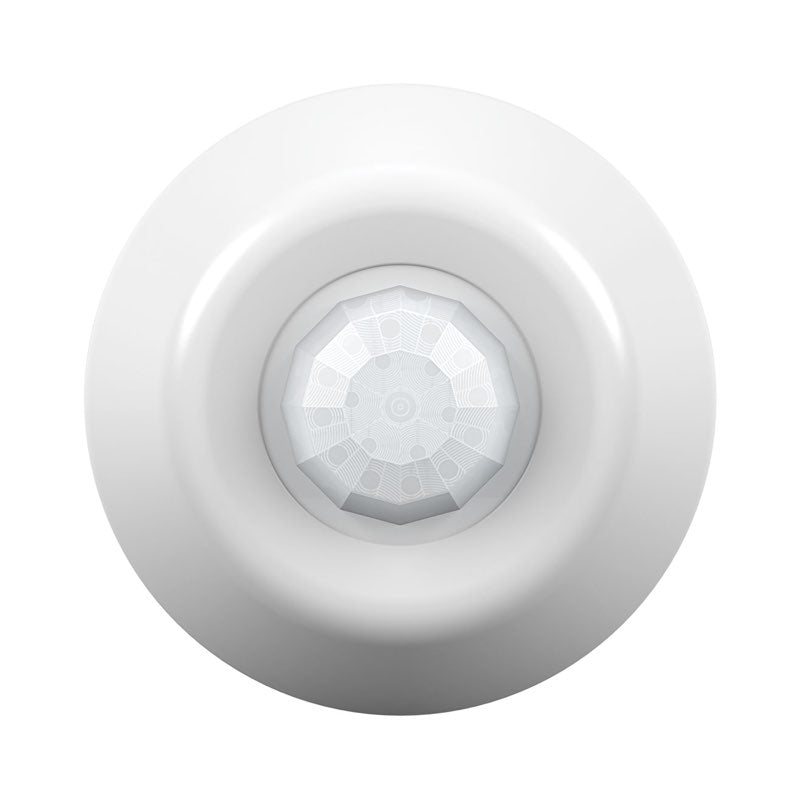

SensorWorx SWX-231-1

SWX-231-1 Product Description

SensorWorx ceiling mount occupancy sensors provides a range of control solutions for spaces with finished ceilings. Preferred by contractors for their simple yet flexible mounting methods SensorWorx sensors reduce installation time and fuss. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.

Dual tech (PIR + ultrasonic) detection: sensors in this model detect small movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor signals a connected power/relay pack to switch on the connected lighting. Additionally, this model comes with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion will be limited. Enhanced options for this sensor include a photocell that will override lights off if sufficient ambient light is present and an isolated relay for interfacing external systems (e.g., HVAC/BAS).

A single sensor can be used in small spaces like a private office, however, multiple low voltage sensors can be easily wired together to provide coverage for larger spaces like an open office.

Specifications:

Brand: SensorWorx
Manufacturer Part Number: SWX-231-1
Occupancy Sensor Type: Passive Infrared (PIR), Ultrasonic, Dual Tech (PIR + Ultrasonic)
Input Voltage: 12V, 12-24V, 24V
Color: White
Detection Zone: 360 Degrees
Sensor Coverage: 500 Sq Ft
Min Operating Temp: -10 Degrees F
Special Features: B.A.A. Compliant

Diameter: 4"
Height: 1.25"

Features:

Digital passive infrared (PIR) detection
Passive acoustic detection
Ambient light override (photocell)
360° coverage pattern
Compact size and matte finish
Four contractor friendly mounting methods
Mounting stem attachment with integrated hole saw
Convenient test mode and adjustable time delays
