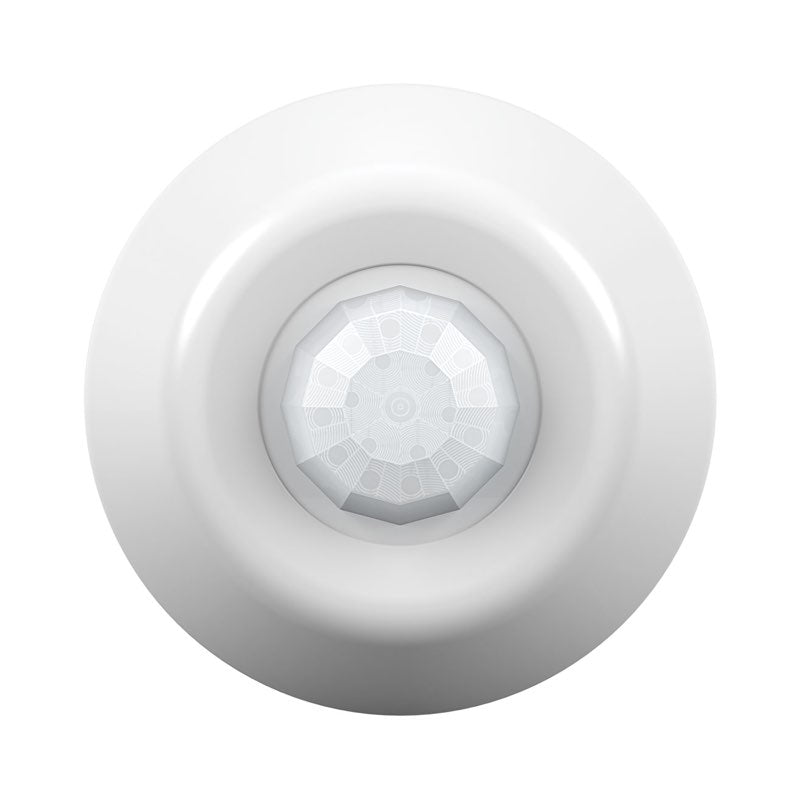

SensorWorx SWX-222-2-HE

SWX-222-2-HE Product Description

SensorWorx line voltage ceiling mount occupancy sensors provides a compact control solution capable of switching lighting loads without requiring a power pack. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.

Dual tech (PIR + ultrasonic) detection: sensors on this model detect large movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor signals a connected power/relay pack to switch on the connected lighting. Being also equipped with passive acoustic detection, the unit’s microphone is enabled to further enhance detection while the lights are on. An internal timer is set to keep lights on during brief periods of inactivity, and is reset every time occupancy is signaled by either the passive infrared or acoustic detection technologies.

Line voltage sensors are self-contained units that directly power from and switch 120/277 VAC. Typically they are used to control areas where a single sensor’s coverage area is sufficient for the entire space.

Specifications:

Brand: SensorWorx
Manufacturer Part Number: SWX-222-2-HE
Occupancy Sensor Type: Passive Infrared (PIR), Ultrasonic, Dual Tech (PIR + Ultrasonic)
Input Voltage: 120-277V
Color: White
Detection Zone: 360 Degrees
Sensor Coverage: 2,000 Sq Ft
Min Operating Temp: -10 Degrees F
Special Features: B.A.A. Compliant

Diameter: 4"
Height: 1.25"

Features:

Digital passive infrared (PIR) detection
Passive acoustic detection
360° coverage pattern
Field changeable lens
Compact size and matte finish
Convenient test mode and adjustable time delays
Electronically timed switching designed for LED fixture control

About SensorWorx:

SENSORWORX is a new brand of lighting controls that is redefining the occupancy sensor category. At the core of this claim is the incorporation of key innovations in three areas: Technology, Convenience, and Manufacturing Quality.

SENSORWORX products are designed, produced, and sold by BLP Technologies, Inc. of Wallingford, Connecticut. Founded in 2017 by engineers with decades of experience in lighting controls, the team behind SENSORWORX has an unmatched resume of bringing high quality and innovative products to the lighting and building control marketplace. With particular expertise in occupancy sensing, BLP Technologies is uniquely qualified to make the SENSORWORX brand the new standard of quality and technology excellence.
