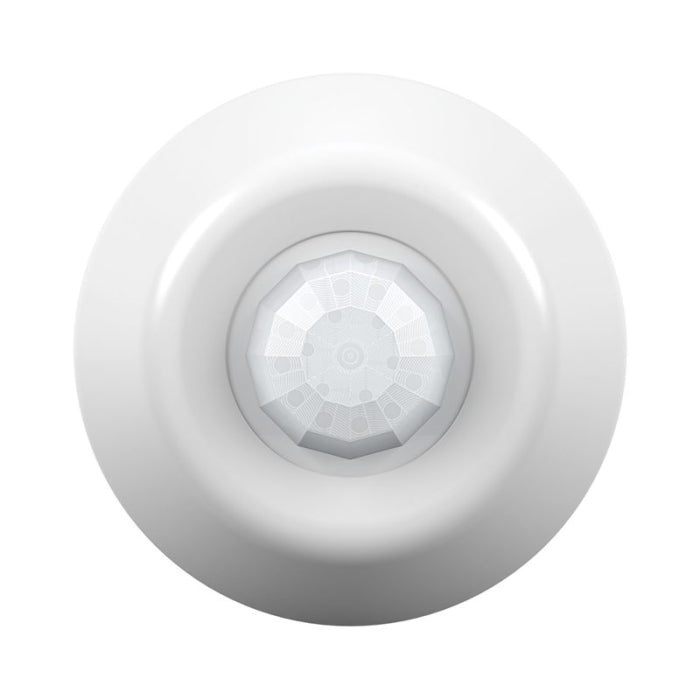

SensorWorx SWX-221-B

SWX-221-B Product Description

SensorWorx ceiling mount occupancy sensors provides a range of control solutions for spaces with finished ceilings. Preferred by contractors for their simple yet flexible mounting methods, SensorWorx sensors reduce installation time and fuss. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.

Dual tech (PIR + ultrasonic) detection: sensors in this model detect small movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor signals a connected power/relay pack to switch on the connected lighting. Additionally, this model comes with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion will be limited. A single sensor can be used in small spaces like a private office, however, multiple low voltage sensors can be easily wired together to provide coverage for larger spaces like an open office.

Battery powered operation: this wireless sensor can be linked to one or more wireless load controllers (such as the SWX-851 wireless wall switch, or a SWX-950 series wireless power pack). Additionally, these sensors can be configured to work in applications with other wireless or wired ceiling, corner, or hallway sensors to provide extended coverage in large or irregularly shaped spaces. For dual technology units with acoustic detection enabled, expected battery life is 5 years. If the sensor’s battery life reaches 10%, all wirelessly linked load controllers will blink lights on/off/on upon initial occupancy as a replacement warning. Replacement batteries are available at most retailers or home centers where batteries are sold or from. Additionally, when linked to wireless wall switch load controllers (SWX-851) or to wireless power packs (SWX-950 series) and remote wireless wall stations, these sensors can be used to meet ASHRAE 90.1, IECC, and Title 24 energy code requirements that require vacancy operation.

Specifications:

Manufacturer: SensorWorx
Occupancy Sensor Type: Passive Infrared (PIR), Ultrasonic, Dual Tech (PIR + Ultrasonic)
Manufacturer Part Number: SWX-221-B
Input Voltage: Battery Powered
Color: White
Detection Zone: 360 Degrees
Sensor Coverage: 500 Sq Ft
Min Operating Temp: -10 Degrees F
Special Features: B.A.A. Compliant
Dimensions
Diameter: 4"
Height: 1.25"

Features:

Digital passive infrared (PIR) detection
Passive acoustic detection
360° coverage pattern
Compact size and matte finish
Four contractor friendly mounting methods
Mounting stem attachment with integrated hole saw
Convenient test mode and adjustable time delays
