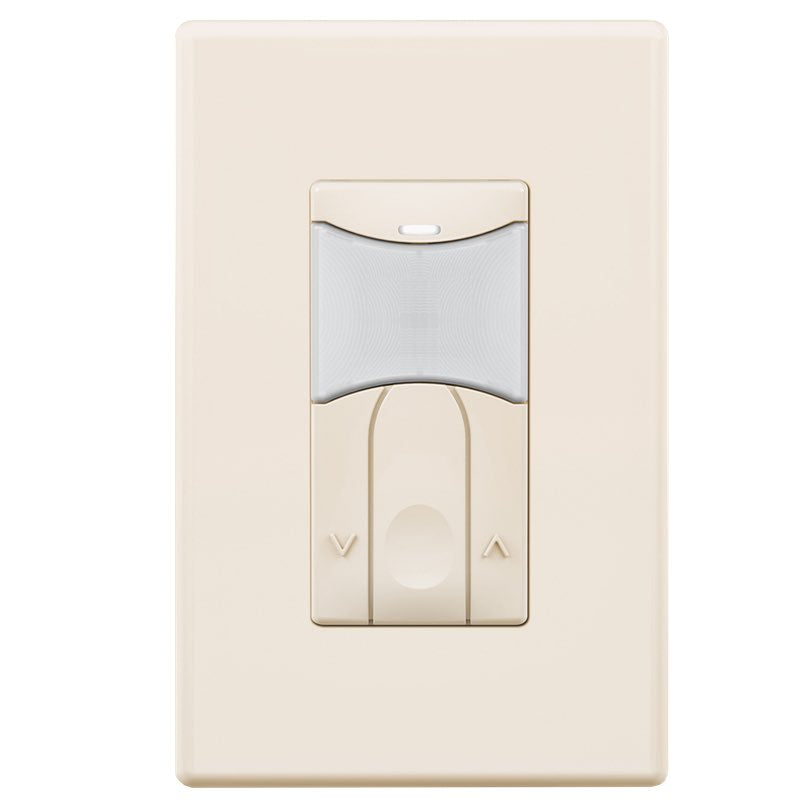

SensorWorx SWX-123-D-IV

SWX-123-D-IV Product Description

The SensorWorx family of wall switch occupancy/vacancy sensors provides a simple yet cost effective lighting control solution for many retrofit applications. Designed with contractors in mind, the SensorWorx 0-10V dimming wall switch sensor is significantly shallower than typical dimmers and sensors, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral and allows reversal of line and load connections. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance.

Passive infrared sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor’s internal relay switches power on to the connected lighting. Passive infrared sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. These units are also equipped with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion is limited.

Manual On / Automatic Off operation: lights can also be switched off manually. This mode provides increased energy savings but requires the user to initially turn on the lights.

Specifications:

Manufacturer:SensorWorx
Occupancy Sensor Type: Passive Infrared (PIR), Ultrasonic, Dual Tech (PIR + Ultrasonic), Manual On
Switch Type: Button
Manufacturer Part Number:  SWX-123-D-IV
Input Voltage: 120-277V
Dimmable: 0-10V
Color: Ivory
Detection Zone:180 Degrees
Sensor Coverage: 2,025 Sq Ft
Min Operating Temp: 32 Degrees F
Special Features: B.A.A. Compliant
Width: 1.68"
Height: 2.74"

Features:

• 0-10V dimming control
• Interchangeable line and load wires – impossible to wire backwards
• Accommodates neutral (3-wire) and no-neutral (2-Wire) installation
• Electronically timed switching ensures long relay life
• Compatible with LED, fluorescent and incandescent lighting
• Meets NEC guidelines regarding current leakage
• Load ratings: 800W max (120V) and 1200W max (277V)

About SensorWorx:

SENSORWORX is a new brand of lighting controls that is redefining the occupancy sensor category. At the core of this claim is the incorporation of key innovations in three areas: Technology, Convenience, and Manufacturing Quality.

SENSORWORX products are designed, produced, and sold by BLP Technologies, Inc. of Wallingford, Connecticut. Founded in 2017 by engineers with decades of experience in lighting controls, the team behind SENSORWORX has an unmatched resume of bringing high quality and innovative products to the lighting and building control marketplace. With particular expertise in occupancy sensing, BLP Technologies is uniquely qualified to make the SENSORWORX brand the new standard of quality and technology excellence.
