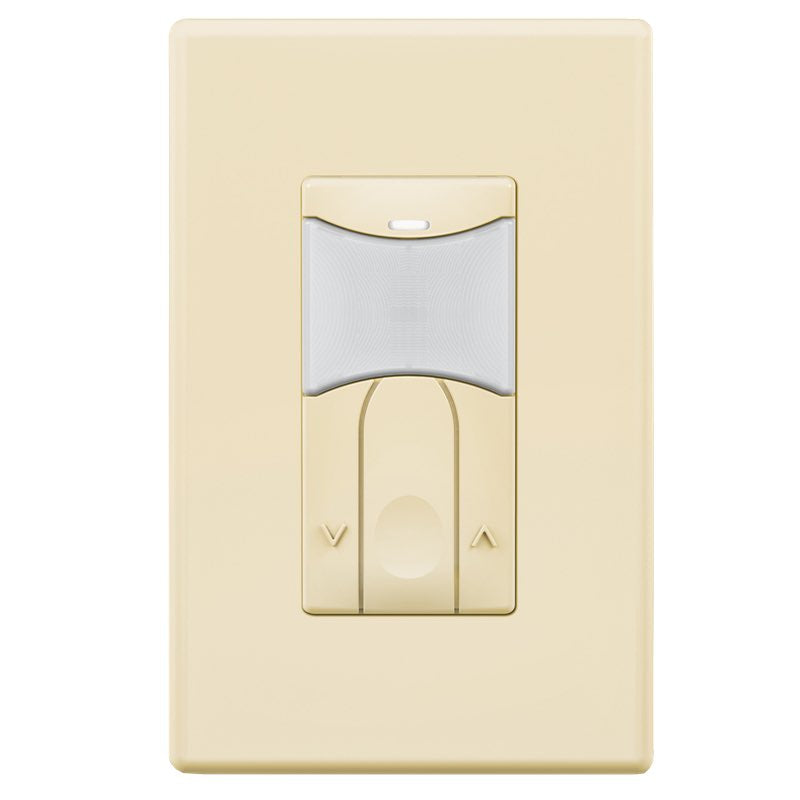

SensorWorx SWX-123-1-D-LA

SWX-123-1-D-LA Product Description

The SensorWorx family of wall switch occupancy/vacancy sensors provides a simple and cost effective lighting control solution for many applications. Just like its line voltage counterpart, the low voltage SensorWorx 0-10V dimming wall switch sensor is designed with contractors in mind. Less than 1” deep, the unit is 25-40% shallower than typical dimmers and sensors, resulting in less crowded wall boxes. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance.

Dual tech (PIR + ultrasonic) detection: sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor’s internal relay switches power on to the connected lighting. These units are also equipped with an integrated microphone to provide overlapping passive acoustic occupancy detection for rooms with obstructions or where occupant motion is limited.

Manual On / Automatic Off operation: lights can also be switched off manually. This mode provides increased energy savings but requires the user to initially turn on the lights.

Low-voltage 12-24V operation and 0-10V dimming control: when coupled with auxiliary power packs (see ‘Frequently Bought Together’ products), these dimming sensor switches can dim as many fixtures as desired as each power pack can handle a load of 16 amps each.

Specifications:

Manufacturer: SensorWorx
Occupancy Sensor Type: Passive Infrared (PIR), Ultrasonic, Dual Tech (PIR + Ultrasonic), Manual On, Stand  Sensor
Switch Type: Button
Manufacturer Part Number: SWX-123-1-D-LA
Input Voltage: 12V, 12-24V, 24V
Dimmable: 0-10V
Color: Light Almond
Detection Zone: 180 Degrees
Sensor Coverage: 2,025 Sq Ft
Min Operating Temp: 32 Degrees F
Special Features: B.A.A. Compliant
Width: 1.68"
Height: 2.74"

Features:

• Enclosure is 25-40% shallower than other sensors (less than 1” depth into wallbox)
• Unique bat-wing shaped lens provides enhanced peripheral detection
• Self-grounding mounting strap
• Modern look and intuitive easy-tap button
• Rugged vandal resistant lens
• Settings are adjustable without removing cover plate

About SensorWorx:

SENSORWORX is a new brand of lighting controls that is redefining the occupancy sensor category. At the core of this claim is the incorporation of key innovations in three areas: Technology, Convenience, and Manufacturing Quality.

SENSORWORX products are designed, produced, and sold by BLP Technologies, Inc. of Wallingford, Connecticut. Founded in 2017 by engineers with decades of experience in lighting controls, the team behind SENSORWORX has an unmatched resume of bringing high quality and innovative products to the lighting and building control marketplace. With particular expertise in occupancy sensing, BLP Technologies is uniquely qualified to make the SENSORWORX brand the new standard of quality and technology excellence.
