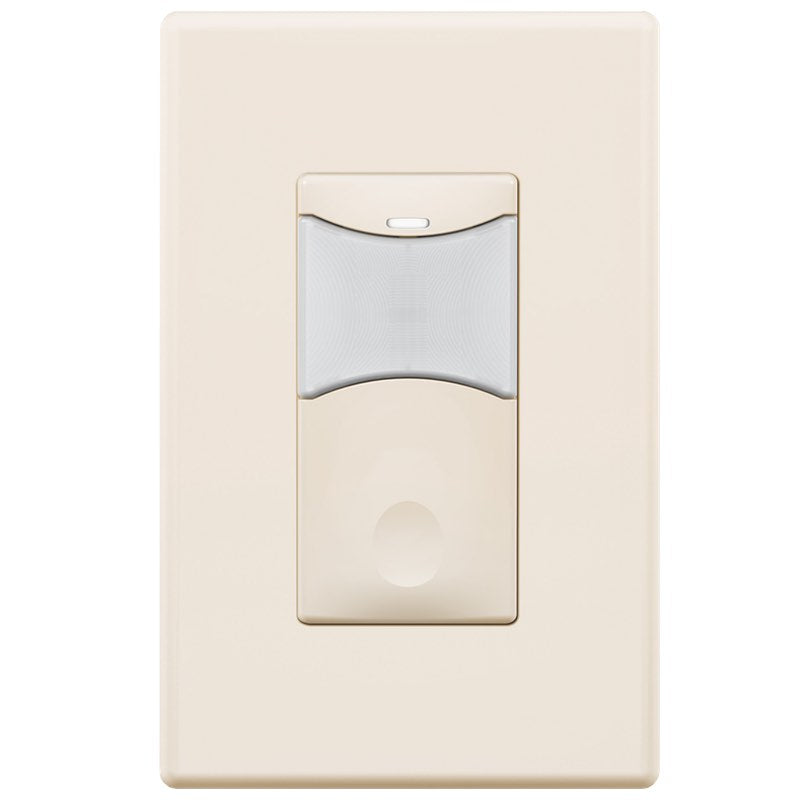

SensorWorx SWX-111-IV Wall Switch Sensor - PIR + Daylight Detection - 1-Pole - Auto On - 120-277V- Ivory
SWX-111-IV
SensorWorx SWX-111-IV
SWX-111-IV Product Description
The SensorWorx family of wall switch occupancy sensors provides a simple yet cost effective lighting control solution for many retrofit applications. Designed with contractors in mind, the SensorWorx wall switch sensor is significantly shallower than typical sensors, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral and allows reversal of line and load connections. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance.
Passive infrared detection: detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor’s internal relay switches power on to the connected lighting. Ambient daylight detection also ensures lights are held off in rooms with sufficient light contribution from windows or skylights.
Automatic On and Automatic Off operation: If lights are switched off manually, the Automatic On functionality is temporarily disabled to allow the occupant a few seconds to leave the room before returning to Automatic On operation. However, if the person remains in the space, the unit will stay in a manual on state until the switch is pressed again.
Specifications:
Manufacturer: SensorWorx
Manufacturer Part Number: SWX-111-IV
Occupancy Sensor Type: Passive Infrared (PIR), Daylight Harvesting, Auto On
Switch Type: Button
Input Voltage: 120-277V
Color: Ivory
Detection Zone: 180 Degrees
Sensor Coverage: 2,025 Sq Ft
Min Operating Temp: 32 Degrees F
Special Features: B.A.A. Compliant
Width: 1.68"
Height: 2.74"
Features:
Interchangeable line and load wires – impossible to wire backwards
Accommodates neutral (3-wire) and no-neutral (2-Wire) installation
Electronically timed switching ensures long relay life
Compatible with LED, fluorescent and incandescent lighting
Meets NEC guidelines regarding current leakage
Load ratings: 800W max (120V) and 1200W max (277V)
