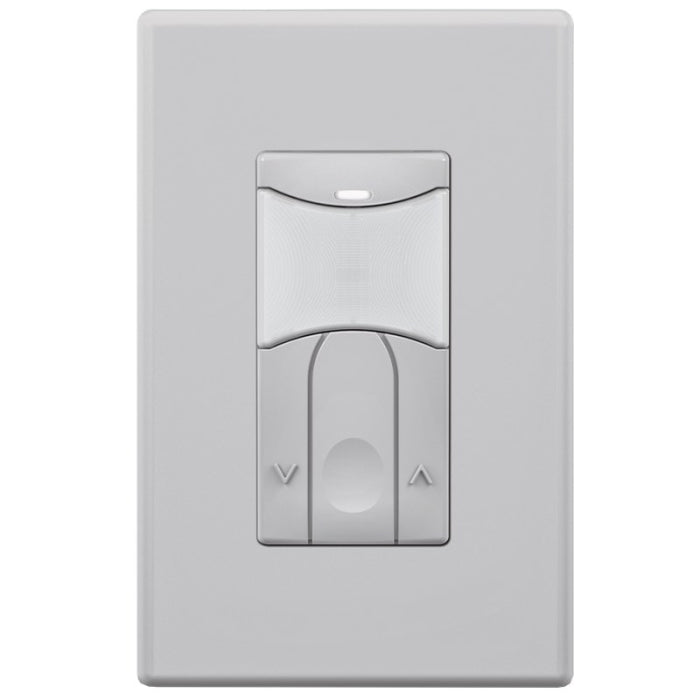

SensorWorx SWX-111-D-GY

SWX-111-D-GY Product Description

The SensorWorx family of wall switch occupancy/vacancy sensors provides a simple yet cost effective lighting control solution for many retrofit applications. Designed with contractors in mind, the SensorWorx 0-10V dimming wall switch sensor is significantly shallower than typical dimmers and sensors, resulting in less crowded wall boxes. Additionally, versatile wiring enables usage with or without a neutral and allows reversal of line and load connections. SensorWorx products utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched motion detection performance.
Passive infrared sensors detect movement in the infrared energy that radiates from occupants as they move within the devices field-of-view. Once occupancy is identified, the sensor’s internal relay switches power on to the connected lighting. Ambient daylight detection also ensures lights are held off in rooms with sufficient light contribution from windows or skylights.
Automatic On and Automatic Off operation: If lights are switched off manually, the Automatic On functionality is temporarily disabled to allow the occupant a few seconds to leave the room before returning to Automatic On operation. However, if the person remains in the space, the unit will stay in a manual on state until the switch is pressed again.

Specifications:

Brand: SensorWorx
Part Number: SWX-111-D-GY
Occupancy Sensor Type: Passive Infrared (PIR), Daylight Harvesting, Auto On
Switch Type: Button
Input Voltage: 120-277V
Dimmable: 0-10V
Detection Zone: 180 Degrees
Sensor Coverage: 2,025 Sq Ft
Min Operating Temp: 32 Degrees F
Special Features: B.A.A. Compliant
Made in USA: Yes
Width: 1.68"
Height: 2.74"
Color: Gray

Features:

0-10V dimming control
Interchangeable line and load wires – impossible to wire backwards
Accommodates neutral (3-wire) and no-neutral (2-Wire) installation
Electronically timed switching ensures long relay life
Compatible with LED, fluorescent and incandescent lighting
Meets NEC guidelines regarding current leakage
Load ratings: 800W max (120V) and 1200W max (277V)
Enclosure is 25-40% shallower than other sensors (less than 1” depth into wallbox)
Unique bat-wing shaped lens provides enhanced peripheral detection
Self-grounding mounting strap
Rugged vandal resistant lens
Settings are adjustable without removing cover plate
Wall-to-wall passive infrared small motion detection
Small motion (e.g., hand movement) detection up to 20 ft (6.10 m), ~625 ft²
Large motion (e.g., walking) detection greater than 36 ft (10.97 m), ~ 2025 ft²
100% passive detection methods – no interference potential from external devices
