SATCO S11697
S11697 Product Description

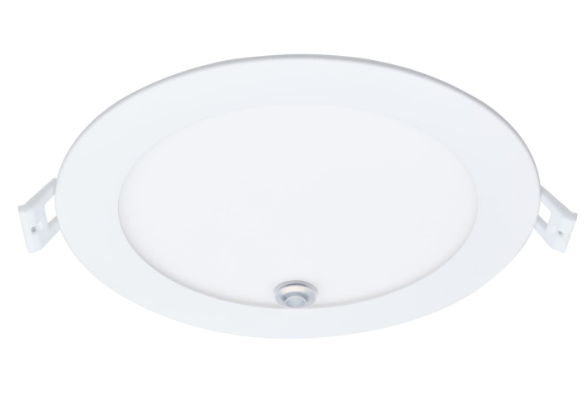

15/11 Watt LED Direct Wire Downlight 27K/3K/35K/4K/5K 6-Inch Dual Dimming; Round with Integrated Emergency and Test Switch
Specifications:
SKU: S11697
Brand: Satco
Bulb Included: Integrated
Diameter: 6.77
Material: Aluminum
Fixture Type: Remote Driven LED Downlight
Product Notes: Plenum Rated FTB Cable; Integrated Emergency Driver and Test Switch; Fixture produces 500lm under emergency battery power; Wattage increases by 5W during charging periods
Status: Active
Style: Utility
Surge Protection: Built-in surge protection - 2.5KV
Total Harmonic Distortion: <30%
Up Down Installation: Down
CCT Selectable: Yes
Wattage Selectable: Yes
Finish Family: White
Additional Info: Default Wattage: 15W; Battery Weight: 0.62lbs
Amps: 0.092-0.040/0.125-0.054A
Integrated Features: Emergency and Test Switch
Lens Finish: Matte Frosted
Lens Material: Acrylic
Lensed: Yes
Nominal Length: 6.0
Power Factor: >0.9
SDS Class: Lithium_Ion_Battery
Sloped Ceiling Compatible: Yes
Indoor Outdoor: Indoor and Outdoor
Product Technology: LED
Incandescent Equivalent: 85W
Electrical Specifications:
CCT (Kelvin Temp): 2700K/3000K/3500K/4000K/5000K
Dimmable: Yes-Dimmable
Hours Rated: 50000
Beam Angle (degree): 108
Color Temp: Warm White to Natural Light
CRI: 90+
Dimming Type: Dual Dimming, Forward or Reverse Phase at 120V-0-10V at 120-277V
Operating Frequency: 60Hz
Operating Temp: -4F to 104F (-20C to 40C)
Lumens: 1350L/1050L
Volts: 120V-277V
Watts: 15W/11W
Physical Specifications:
Lamp Base: Integrated
Finish: WHITE
Housing Color: White
ANSI Base: Integrated
Lamp Type: Integrated LED
Fixture Shape: Round
Additional Info:
Warranty: 5-Years
About SATCO:
SATCO|NUVO® is a leading manufacturer of lighting solutions including bulbs, decorative lighting, functional and task lighting, and lighting components. We carry over 12,000 skus at any given time and manufacture approximately 2.3 new products daily. We are a lighting resource for nearly every application across the residential, commercial, and industrial landscape, and we pride ourselves in our ability to serve the lighting community as a single vendor solution
