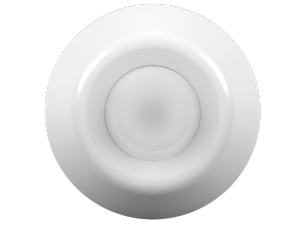

PLC Multipoint OCS-250-1

OCS-250-1 Product Description

Cadence photocell sensors control lighting according to measured ambient
lighting in a space. Basic on/off units signal a connected power pack to turn
lights off when ambient levels are high enough that desired overall light levels
are maintained.

Units with the daylight harvesting (dimming) option track a space’s overall
illumination and dim connected lighting to achieve energy savings. During times
of high daylight contribution to a space, controlled artificial lighting will be
gradually dimmed to a minimum dimmed level. During times of no or low daylight
contribution, controlled artificial lighting will increase back up to its maximum
level. The sensor can also be configured to signal a connected power pack to
switch lighting off completely in maintained high daylight conditions. Additional
configurable parameters include high & low trim levels and fade rates.

All photocells provide the option of selecting the ambient light threshold (e.g.,
setpoint) from a range of preset values or running an auto-selection mode where
the unit will determine the setpoint based on the measured amount of light it is
controlling.

Specifications:

Manufacturer: PLC Multipoint
SKU: OCS-250-1
Operating Voltage : 12-24 VAC/VDC
Operating Temperature: 32°F to 122°F (0°C to 50°C)
Current Draw: 2mA
Dimming Capacity: 50mA
Size: 4.00” Diameter x 1.25” H (10.16 x 3.17 cm)
Weight: 4.75 oz
Color: White

About PLC Multipoint:

For more than 30 years, PLC Multipoint has been making a name for itself as a creator and producer of the industry's finest lighting sensor controls and has earned a reputation as the go-to resource for solving the most complex lighting control challenges. PLC Multipoint’s product families include lighting control systems and daylighting sensors for a wide variety of applications.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
