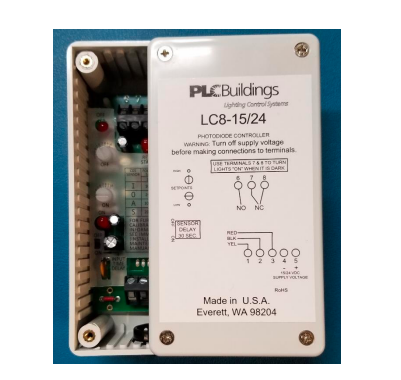

PLC Multipoint LC8

LC8 Product Description

PLC Multipoint has been making a name for itself as a creator and producer of the industry's finest lighting sensor controls and has earned a reputation as the go-to resource for solving the most complex lighting control challenges. PLC Multipoint’s product families include lighting control systems and daylighting sensors for a wide variety of applications. The LC8 Lighting Controller automatically switches a dry contact in response to change in natural daylight. The LC8 provides a maintained single pole, double throw relay output to drive electrically held contactors or relays, or has the ability to provide inputs to Energy Management Systems (EMS). The LC8 can control incandescent, fluorescent or HID lighting. The low voltage controller requires a remotely mounted CES or MAS sensor. The LC8 controller provides Low and High setpoints, with a deadband to eliminate nuisance, intermittent changes.

Specifications:

Manufacturer: PLC Multipoint
SKU: LC8
Input Voltage: 24VDC
Output: Standard – Form C SPDT Relay
Capacity: 3 Amps resistive @ 24VDC
Input Sensor Type: CES Photodiode – 3 wire or MAS Photodiode – 2 wire (with PCRK)
Input Time Delay: 30 seconds (may be overridden with the Input Time Delay Switch)
Dead Band: Adjustable - 5-95%
Operating Temperature: -12°F to +140°F (-11°C to 60°C)
Accuracy: +/-1% at 70°F (21°C)
+/-5% above 120°F or below 0° F. (49° C /-18° C)
Enclosure Dimensions: 4.75”H x 2.25”W x 1.5”D

About PLC Multipoint:

For more than 30 years, PLC Multipoint has been making a name for itself as a creator and producer of the industry's finest lighting sensor controls and has earned a reputation as the go-to resource for solving the most complex lighting control challenges. PLC Multipoint’s product families include lighting control systems and daylighting sensors for a wide variety of applications.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
