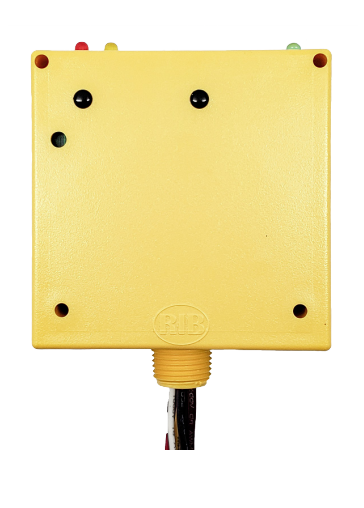

PLC Multipoint EMR-20-CR-D UL 924/20 Amp Automatic Load Control Relay
2
sold in last
8
hours
EMR-20-CR-D
$220.13
customers are viewing this product
PRODUCT DESCRIPTION
PLC Multipoint EMR-20-CR-D
EMR-20-CR-D Product Description
UL924 Emergency Lighting ALCR, 20 Amp, 0-10V Dimming Override, 120-277 VACSpecifications:
# Relays & Contact Type: One (1) SPST Continuous Duty CoilExpected Relay Life: 10 million cycles minimum mechanical
Operating Temperature: -30 to 140° F
Operate Time:18ms
LED: Green = Normal Power
Red = Emergency Power
Yellow = Load Power
Dimensions:4.0˝ x 4.57˝ x 1.80˝ with .50˝ NPT Nipple
Wires: 16˝, 600V Rated
Approvals: UL Listed, UL924, C-UL, CE, RoHS
Housing Rating: UL Accepted for Use in Plenum, NEMA 1
Gold Flash: No
Override (Test Switch): Yes
Humidity Range:5-95%(noncondensing)
About PLC Multipoint:
For more than 30 years, PLC Multipoint has been making a name for itself as a creator and producer of the industry's finest lighting sensor controls and has earned a reputation as the go-to resource for solving the most complex lighting control challenges. PLC Multipoint’s product families include lighting control systems and daylighting sensors for a wide variety of applications.Have Questions?Ask a BuyRite Electric Expert
