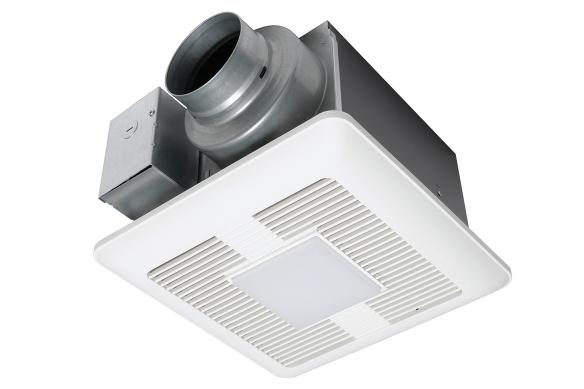

Panasonic WhisperCeiling DC - ECM Motor with Pick-A Flow Fan with Led Light 50-80-110 CFM FV-0511VQL1

FV-0511VQL1
$229.00 $210.00
-
+
$210.00

WhisperCeiling® DC™ Precision Spot Ventilation Fan/ Light with built-in Pick-A-Flow™ speed selector switch allows you to select your required airflow (50-80-110 CFM). Features an ECM Motor with SmartFlow® technology and a Flex-Z Fast installation bracket. Can be used to comply with the latest codes and standards.

KEY FEATURES:

Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (50, 80, 110 or 110, 130, 150 CFM models)
Flex-Z Fast bracket provides flexible, fast & trouble-free installation, even from below the ceiling
Lighted models incorporate one long-life, 10W dimmable LED chip panel with <1W LED night light for warm, energy efficient illumination
Elegant grille design compliments the aesthetics of any bathroom

    SPECIFICATIONS:

    Advanced Features Single Speed
    Air Volume (CFM) 110, 110, 80, 83, 50, 50
    Blower Wheel Type Sirocco
    California Title 24 Compliant Yes
    Color Rendering Index 90
    Color Temperature (Kelvin) 3,000
    Current (Amps) 0.18, 0.26, 0.11, 0.19, 0.07, 0.12
    Duct Diameter 4" or 6"
    Energy Efficiency (CFM/Watt) 10.3, 7.0, 13.7, 7.7, 14.1, 7.8
    ENERGY STAR® Certified Yes
    Grille Size (in sq.) 13"
    Gross Weight (lbs) 11.7
    Lamp Watts 10.0
    Lumens (lm) 700
    Lumens Per Watt (LPW) 70
    MAX. Current (Amps) 0.30
    Mfg in ISO 9001 Certified Facility Yes
    Motor Type (AC/DC) DC
    Mounting Opening (in sq.) 10-1/2"
    Night Light 0.2
    Noise (Sones) 0.4, 0.9, <0.3, 0.6, <0.3, 0.4
    Power Consumption (Watts) 10.9, 16.1, 6.0, 11.0, 3.9, 7.1
    Power Rating (V/Hz) 120/60
    Product Family Name WhisperCeiling DC
    Rated Life (hours) 50,000
    Speed (RPM) 1342 1480 1016, 1268, 867, 1185, 768, 1097
    Static Pressure in inches w.g. 0.1, 0.25, 0.1, 0.25, 0.1, 0.25
    Thermal Fuse Protection Yes
    Type of Lamp Socket LED Chip
    Type of Motor Bearing Ball
    UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
    UL tub/Shower Enclosure Yes
    Washington VIAQ Code Yes
      Please email us with the products you need and the desired quantity at buyriteelectric@gmail.com
