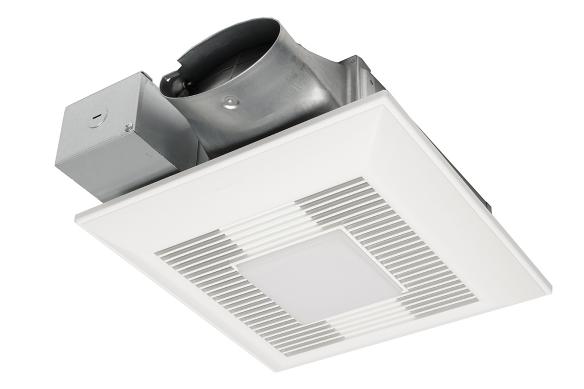

Panasonic Whisper Value 50/80/100 CFM DC Fan with Condensation Sensor & LED Light FV-0510VSCL1

FV-0510VSCL1
$220.00 $165.00
-
+
$165.00

WhisperValue® DC™ Fan/LED light with built-in condensation sensor helps control bathroom moisture while preventing mold and mildew. As the lowest profile, ENERGY STAR® rated ventilation fan available it is ideal for all types of residential and multi-family construction. Features our revolutionary ECM motor with SmartFlow™; technology to remove unhealthy air from any space. Pick-A-Flow™ speed selector switch enables you to customize airflow settings at your choice of 50, 80 or100 CFM.

KEY FEATURES:

Revolutionary ECM motor with SmartFlow™ technology for optimum CFM output
Pick-A-Flow™ Speed Selector – one fan, you choose the CFM (50, 80 or 100 CFM)
Optional built-in Multi-Speed Control for ASHRAE 62.2 compliance
Optional built-in Condensation Sensor to control bathroom moisture
Lighted models incorporate one 10W dimmable LED chip panel with <1W LED optional night light for warm, energy efficient illumination

    SPECIFICATIONS:

    Air Volume Exhaust (CFM) 50 @ 0.1" SP, 52 @ 0.25" SP, 80 @ 0.1" SP, 81 @ 0.25" SP, 100 @ 0.1" SP, 101 @ 0.25" SP
    Master Carton Dimensions (HxWxD) 9.06 x 14.17 x 16.93
    CFM 50-70. 80-110
    Other Approved Codes and Standards ASHRAE 62.2, LEED, California Title 24, Washington VIAQ
    Color Rendering Index 90
    Color Temperature (Kelvin) 3,000
    Construction Type Single-Family/Manufactured Housing. Multi-Family. Hospitality/Assisted Living/Student Housing. Renovation/Remodeling
    Current (Amps) 50 CFM= .08A, 80 CFM= .13A, 100 CFM=.18A
    Ventilation Design Approach Continuous Ventilation. Spot Ventilation
    Duct Diameter 4" Oval
    Energy Efficiency (CFM/Watt) 50 CFM= 12.1 CFM/W, 80 CFM=10.0 CFM/W, 100 CFM = 8.2 CFM/W
    ENERGY STAR® Certified Yes
    Fan Type Fan Only
    Grille Size (in sq.) 13"
    Industry Residential. Light Commercial
    Installation Ceiling Mount, Wall Mount (UL), Tub/Shower (UL)
    Lamp Watts 10
    Lumens (lm) 700
    Lumens Per Watt (LPW) 70
    Motor Type (AC/DC) ECM
    Mounting Opening (in sq.) 10-1/2"
    Mounting Options Ceiling Mount. Wall Mount (UL). Tub/Shower (UL)
    Night Light 0.2
    Noise (Sones) 50 @ 0.1" SP = < 0.3, 52 @ 0.25" SP = 0.5, 80 @ 0.1" SP = 0.4, 81 @ 0.25" SP = 0.8, 100 @ 0.1" SP = 0.9, 101 @ 0.25" SP = 1.3
    Power Consumption (Watts) 50 CFM= 4.5W, 80 CFM= 8.5W, 100 CFM=12.4W
    Power Rating (V/Hz) 120/60
    Product Family Name WhisperValue DC
    Radiation Damper Available Yes
    Rated Life (hours) 50,000
    Type of Lamp Socket LED chip
    UL Listed for Tub/Shower Enclosure when GFCI Protected Yes
    Warranty 6 year DC Motor, 3 Year Parts
    Master Carton Gross Weight (lbs.) 9.0
      Please email us with the products you need and the desired quantity at buyriteelectric@gmail.com
