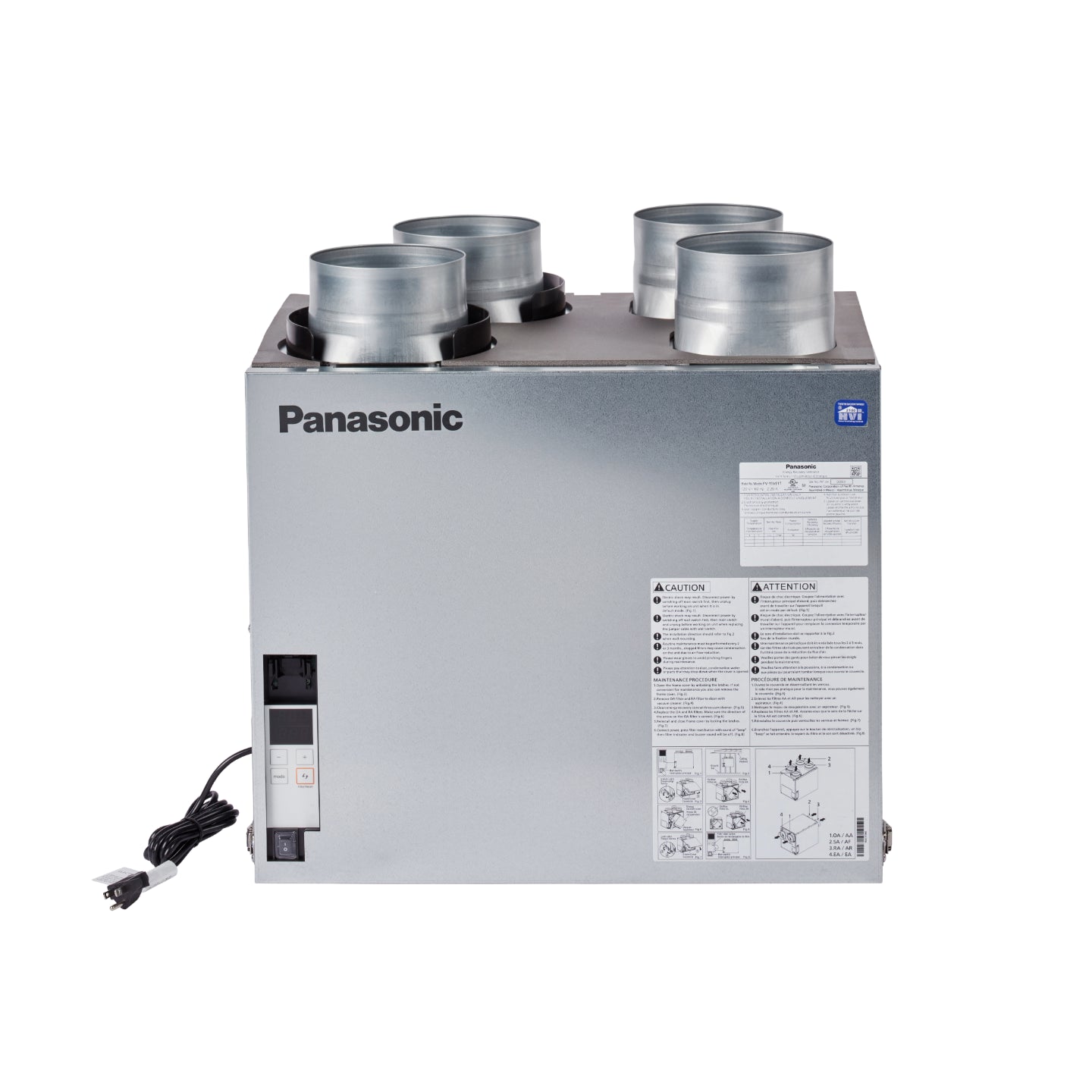

Panasonic FV-16VEC1T

FV-16VEC1T Product Description

Bring advanced indoor air quality to your projects with the industry’s most versatile energy recovery ventilator. The BalancedHome™ series offers unmatched flexibility with 8 models and 4 max adjustable CFM ranges, allowing you to choose the perfect solution for any home. Our unique design accommodates both top and side port installations, making it easier to integrate into your plans while meeting stringent code requirements.

Specifications:

Brand: Panasonic
Part Number: FV-16VEC1T
UPC: 885170438484
Power Rating: 120V/60Hz, 3.1 Amps
CFM Range (Supply/Exhaust): 30–160 CFM (adjustable); Boost Capacity up to 160 CFM
Static Pressure: 0.4" w.g. (tested under CSA-C439)
Heating Efficiency:
Sensible Recovery: ≥82% at 36 CFM, 32°F
Adjusted Sensible Recovery: ≥84% at 36 CFM, 32°F

Cooling Efficiency:
Total Recovery: ≥81% at 36 CFM, 95°F
Motors: Two (2) DC ECM brushless motors (continuous run, thermal fuse-protected)
Duct Diameter: ≥6"
Mounting: Ceiling or wall mount with included brackets

Filters:

Included: MERV 13 [FV-FL1316VE1]
Replacements: MERV 8 [FV-FL0315VE1], washable MERV 6 [FV-FL0616VE1]
Filter Alerts: Visual/audible indicators after 90 days runtime

Certifications: ASHRAE 62.2, ENERGY STAR™, LEED, Indoor airPLUS, CEC, Washington State Energy Code
Warranty: ECM Motors: 6 years | All Other Parts: 3 years
Operating Temperature: Freezing conditions supported via recirculation/exhaust modes
Power Consumption: ≤109W at 0.2" w.g., 129 CFM

Features:

Panasonic Hygroscopic Membrane Core: Transfers moisture/energy between indoor/outdoor air streams.
Frost Prevention Mode: Automatically prevents core freezing in low temperatures.
ASHRAE 62.2 Timing Function: Ensures code-compliant ventilation schedules.
Fault Indication Device (FID): Alerts for maintenance or installation issues (CEC-certified).
Adjustable CFM & Boost: User-selectable airflow with temporary boost capacity.
LED Display: Speed selectors for supply/exhaust airflow.
Durable Housing: Galvanized steel construction with corrosion resistance.
Easy Installation: Pre-drilled brackets, vertical duct adapters included.
Low Maintenance: Washable/replaceable filters with automated reminders.
Energy Recovery: Reduces HVAC load by tempering incoming air.
Compliance Ready: Meets Ontario Building Code, California Title 24, and more.

Included Accessories:

Ceiling chain mounts and wall brackets
Vertical duct adapters for supply/return air
MERV 13 filter (pre-installed)
