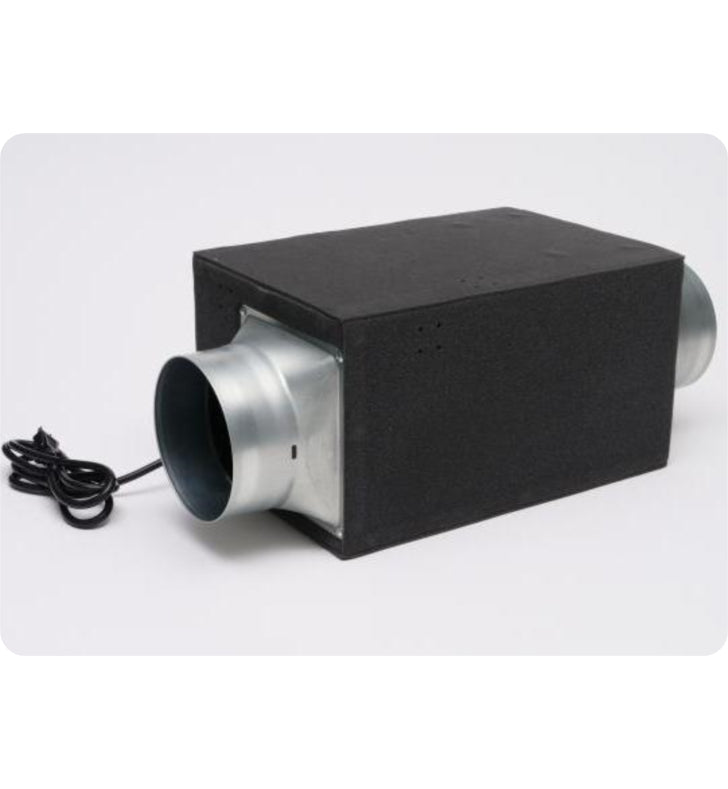

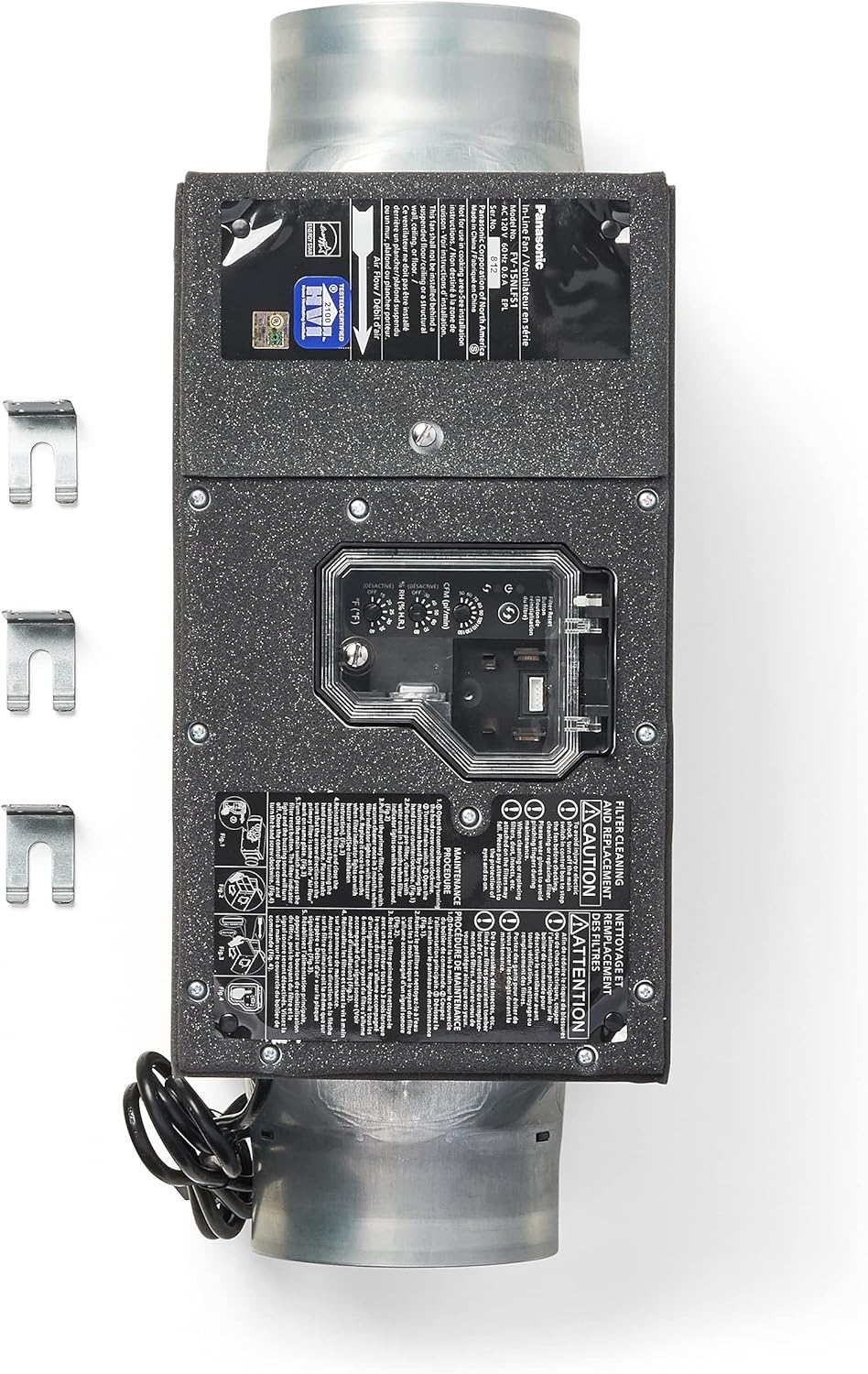

Panasonic FV-15NLFS1

FV-15NLFS1 Product Description

WhisperFresh Select is the ultimate supply air fan. Built-in Pick-A-Flow airflow selector switch allows you to select your required airflow (50-150 CFM). Features an ECM Motor with SmartFlow technology for CFM output to achieve precision whole-house supply ventilation. WhisperFresh Select can be used to comply with the latest codes and standards including ASHRAE 62.2, LEED and CA Title 24.

Specifications:

Brand: Panasonic
Part Number: FV-15NLFS1
UPC: 885170330832
Type: In-line (Single-Port)
Number of Speeds: 3 or more
Airflow (CFM):
Airflow 1: 150.0 CFM
Airflow 2: 90.0 CFM
Airflow 3: 50.0 CFM
Efficacy (CFM/Watt):
Efficacy 1: 5.7 CFM/Watt
Efficacy 2: 7.6 CFM/Watt
Efficacy 3: 7.2 CFM/Watt
Sound Level (sones): N/A
MERV of In-line Fan Filter: 13
Duct Size: 6.00 inch diameter
Lighting: No
ENERGY STAR Certified: Yes

Features:

Customizable fresh air supply fan featuring Pick-A-Flow™ technology – one fan, you choose the CFM (50-60-70-80-90-100-110-130-150 in CFM; 9 settings)
Intelligent ECM motor with SmartFlow technology provides optimum CFM output for precision whole-house supply ventilation
Operates as a stand-alone filtered supply fresh air solution to meet ASHRAE 62.2 requirements for make-up/supply air
Capable of communicating with Panasonic's acclaimed WhisperGreen® Select™ to create a balanced ventilation solution
Incorporates adjustable high humidity and low temperature dials for easy adjustments in any climate zone
HVI certified for use with MERV 8 (FL0815NL1) and MERV 13 (FV-FL1315NL1) filters. MERV 13 filter included, MERV 8 and MERV 13 replacements available
Can be used to comply with ASHRAE 62.2, LEED and CA Title 24
