Orbit SSB-T5B-200 Preassembled SSB With Uma-lvbs And True 5” Square Box

Orbit SSB-T5B-200

SSB-T5B-200 Product Description

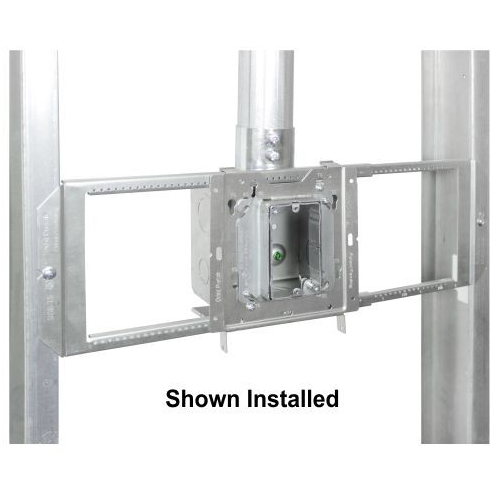

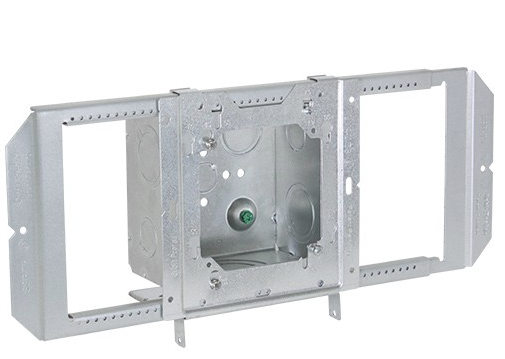

Orbit's Preassembled SSB-T5 with UMA-LVBS and T5B-200 is a ready-to-install solution for mounting large datacom boxes between wall studs or hard-lid ceiling joists. The SSB-T5B-200 bracket component adjusts from 15” to 25” with UMA-LVBS attached to bracket. UMA-LVBS features unique key-hole pattern that allows for pairing of 4” rings with the 5” square box. SSB-T5B-200 includes preinstalled screws, ready to take a 4” ring or cover. UL Listed.

Features:

- SSB-T5 bracket adjusts from 15" to 25"
- Rigidity eliminates need for far-side back support
- T5B-200 offers 75.6 Cu. In. of internal volume – meets min. cable bend radius
- Supports all current copper, CAT, and fiber optic cables, with space for predicted cable size increases
- UMA-LVBS permits 4" mud ring attachment to 5" square box
- Slide 5” box to critical position - lock in place with one Tek screw
- Includes preinstalled #8-32 screws for quick attachment of 4” rings or covers
- Horizontal pin holes provide quick starting point for screws
- Compatible with Orbit’s UL Adjustable Rings
- Optional BMCS Series provides built-in cable/conduit support
- Add LVSB Series Rings for low voltage applications that require no back-box
- Ships preassembled, reducing installation time

Specifications:

Material Sheet Steel
Color Galvanized
KO Sides (2) 1" to 2" C.K.O.'s, (2) 1" & 1-1/4" M.K.O.'s,
(2) 1/2" & 3/4" M.K.O.'s
KO Bottom (1) 1/2" & 3/4" M.K.O.'s, (1) 3/4" & 1" M.K.O.'s
(1) 1/2" K.O.'s, (2) Ground Screws

Box Dimensions:

Width 5"
Height 5"
Depth 3 - 1/4"
Cu. In. 71.8
