Orbit SSB-4S

SSB-4S Product Description

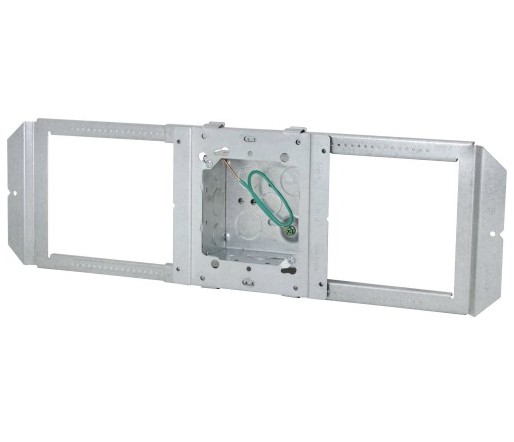

Orbit's Preassembled SSB-T5 with UMA and 4" (4S) Box is a ready-to-install solution for mounting switches and outlets between wall studs or hard-lid ceiling joists. The SSB-4S bracket component adjusts from 15” to 25” with UMA attached to bracket. Includes 4” square 2-1/8” deep box with 1/2" & 3/4” knockouts and preinstalled 10” pigtail. UL Listed.

Features:

- SSB-T5 bracket adjusts from 15" to 25"
- Rigidity eliminates need for far-side back support
- Includes 4” square 2-1/8” deep box with 1/2" & 3/4” KOs
- Includes 10-32 Ground Screw with 10" Solid Cu. #12AWG Pigtail
- Snap-on UMA adapter can be removed and installed quickly without tools
- Slide 4” box to critical position - lock in place with one Tek screw
- Horizontal pin holes provide quick starting point for screws
- Compatible with Orbit’s UL Adjustable Rings
- Optional BMCS Series provides built-in cable/conduit support
- Add LVSB Series Rings for low voltage applications that require no back-box
- Ships preassembled, reducing installation time

Specifications:

Material Sheet Steel
Color Galvanized
Sides KOs (8) - 1/2", (4) - 3/4"
Bottom KOs (2) - 1/2", (2) - 3/4"
