Orbit AWC-LWP6-60W-P

AWC-LWP6-60W-P Product Description

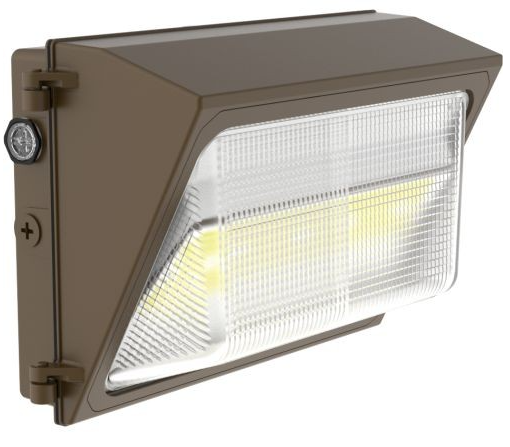

The Traditional LED Wall Pack offers ADJUSTABLE COLOR TEMPERATURE (CCT) and ADJUSTABLE WATTAGE on all models. Ideal for outdoor commercial areas such as retail centers, loading docks, or warehouse exteriors. CCT and Wattage outputs are tuned via a built-in switch located outside the fixture. Ranges from 30W (3,818 lumens) to 150W (19,384 lumens). Set CCT levels to either 3000K, 4000K, or 5000K. Includes photocell with ON/OFF switch. UL Listed for Wet Locations. DLC Premium Listed

Specifications:

Voltage:    120~277V
Power Factor:    > 0.9
Distribution Type:    TYPE IV
Housing:    ADC12 Die Cast Aluminum
Finish:    UV Resistant Bronze Powder Coat Finish
Lens Material:    Prismatic Borosilicate Molded Lens with Weatherproof Gasket
Ambient Operating Temp:    -40°C / -40°F to 40°C / 104°F
Mount:    Wall Mount
UL listed for Wet Location    E335594
Life Hours:    50,000
Warranty:    5 Year Limited Warranty
Beam Angle:    92° x 108° (60W)
102° x 110° (80W)
95° x 113° (150W)
Photocell:    Built-In With ON/OFF Switch
Dimmable:    0-10V/PWM/VR
Surge Protection:    2KV - 60W
                                6KV - 80W/150W
Dimensions: (A) 14-5/16" x (B) 9-1/4" x (C) 6-3/8"
Wattage Range: 30W-40W-60W
CCT: 3000K/ 4000K/ 5000K
