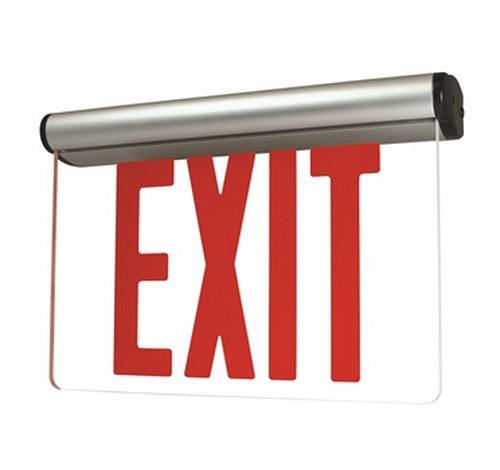

Nora Lighting NX-822-LEDR 8" Letter Adjustable Face LED Edge-Lit Exit Sign (NY Approved)
2
sold in last
8
hours
NX-822-LEDR1CA
$117.45
customers are viewing this product
PRODUCT DESCRIPTION
Architectural acrylic edge-lit sign for applications requiring low-profile, yet decorative appearance. Uses included, but are not limited to museums, galleries, office building lobbies, etc. Incorporates 25+ year LED source. AC, 2-Circuit, and Battery Backup configurations are available with letters in either green or red color.
SPECIFICATIONS :
Application : Adjustable
Construction Type : Commercial / Architectural
Light Source : LED
Options : ENERGY STAR certified
Mounting
Mounting hardware consist of 0.06 steel universal junction box bracket, 7/8″ profile 0.11 die-cast aluminum bracket cover, screws, wire nuts, and silver-finished plastic plugs that are used to eliminate remaining knockouts once mounting configuration is selected.
ELECTRICAL
Voltage
Input: Dual 120V/277V (0.038A / 0.017A)
Wattage: 3 Watts normal / 5 Watts emergency operation
Light Source: Long life LED sources
Testing: High charge / ready operation indicator light with test button and automatic reset
Circuit Protection: Isolated surge / short circuit protection (Disconnect for deep discharge)
Life Expectancy: 25 Years with no change in illumination level. 5 year warranty on materials
and workmanship.
Battery (NX-822-LED)
Replaceable Ni-Cad battery (NED-NICAD)
90 minute emergency operation
Optional Accessories
NEB-NICAD: Replacement 4.8V Ni-Cad Battery
NEXC-R: Replacement Red Chevrons
Labels and Listings
UL Listed
NEC
NFPA
State & Municipal
5 Year Warranty on materials and workmanship
NY Approved
