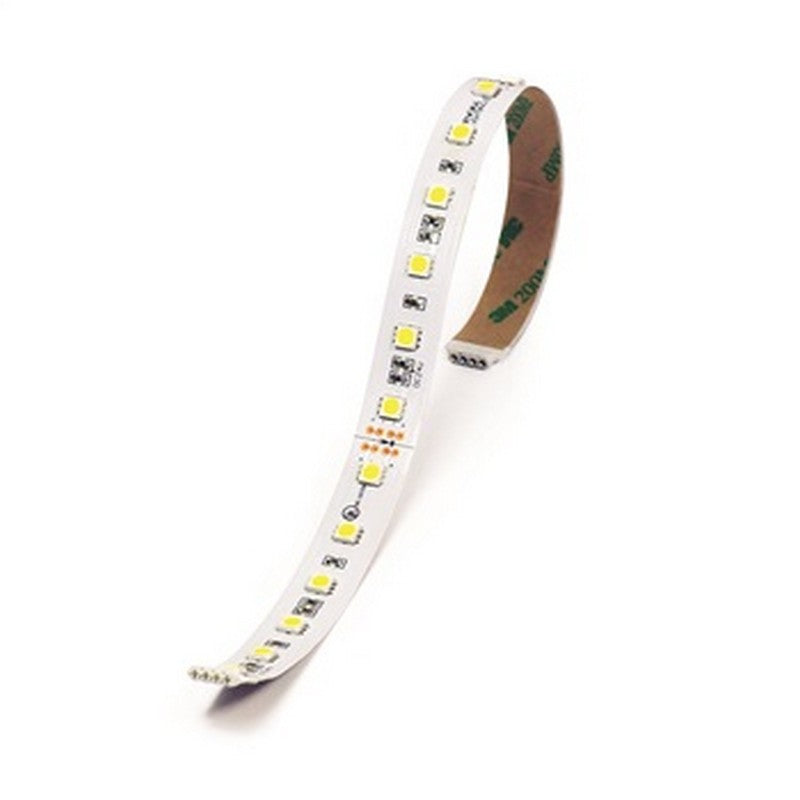

Nora Lighting NUTP8-WLED94212

NUTP8-WLED94212 Product Description

High Output LED Tape Light has three times the light output of our standard tape, and is a perfect solution for your LED linear lighting needs. Very low profile High Output LED Tape is great for use in cove lighting, architectural enhancements, under cabinet or many more discreet locations

FEATURES :

· Available in 10’ roll, 12” section, and 4” section
· 24V DC system
· 350 lumens per foot
· 5 available colors: Blue, Red, Cool White (4200K), Warm White (3000K) or Warm White (2700K)
· Separable every 12”, easily disconnected and connected without soldering
· Field cuttable every 4” or 6 LEDs
· Easy to install; pre-applied 3M™ tape or 15 acrylic mounting clips (included with roll)
· No soldering or additional wiring is required

SPECIFICATIONS :

Construction:
The silicone encapsulated tape can be cut every 4" or 6 LEDs at marked intervals. Cutting does not effect circuit (shrink wrap tube included for concealment). LED Tape Light is also separable every 12”, each connection has pre-installed shrink wrap around power connections to ensure listing. Simply slice the clear shrink wrap at each electrical connection, and separate pieces. This eliminates soldering when using partial rolls. Each roll or kit comes with 12” power line connector [NAHO-609].

Mounting:
Each Tape Light includes pre-applied 3M™ adhesive tape for simple installation. Optional channels and clear acrylic clips are available.

LIMITATIONS
· Not rated or warranted for enclosed applications, only approved channels
· Tape light and most accessories are not rated for in-wall installation (NATL-W16-2 is rated for in-wall installations)
· Do not install in where LED chips are exposed to direct sunlight, as damage to the phosphor will occur

ELECTRICAL
Input Voltage:
24V

Light Source:
18 High Output LEDs per foot

Lumens / Wattage:
350lm / 4.1W per foot

Color Temperature:
Blue, Red, 2700K, 3000K or 4200K

CRI:
90 CRI

Operating Temp.:
-25°C to 45°C

Dimming:
Dimmable with Dimmable LED Driver

Maximum Run Length:
10'

LABELS AND LISTINGS
· cULus Listed for Damp Location
· IP44 rated
· 3-Year Limited Warranty
