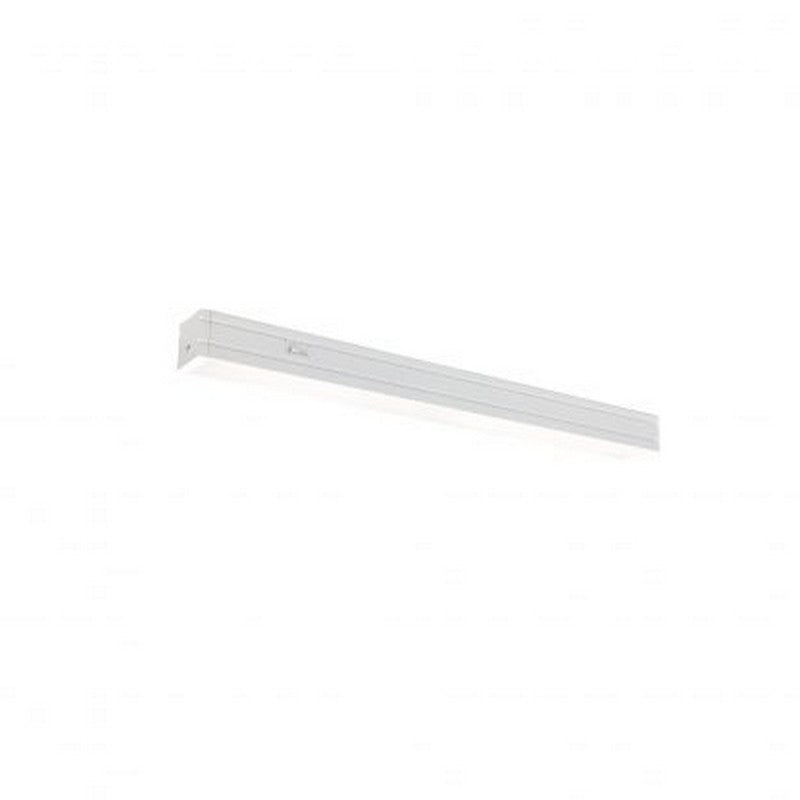

Nora Lighting NUDTW-9816/W

NUDTW-9816/W Product Description

Low-profile LED Bravo FROST Tunable White fixtures provide excellent and even illumination on all surfaces. At only 10 watts per foot, Bravo FROST TW produces an incredible 850 lumens per foot at a crisp sharp 90+ CRI. Each Bravo Frost TW contains
it own driver allowing a 120V feed and longer single runs than low voltage systems. It is one of the most energy efficient
products in the market.

FEATURES :

· Architectural extruded aluminum construction
· Symmetrical internal reflectors produce broad even light
· Frosted lens eliminates LED diode image
· 120V linear system
· 850 lumens / 10 Watts per foot
· Field Selectable CCT (3000K, 3500K or 4000K @ 90+ CRI)
· Available in 4 different lengths: 12", 16", 24" or 32"
· Linkable up to 270 Watts fixtures (about 27')
· Less than 1” in depth.
· Self contained dimmable electronic driver in each unit
· 0º to 90º adjustable mounting brackets included

SPECIFICATIONS :

INCLUDED WITH EVERY BRAVO FROST
(2) Adjustable mounting clips (0º - 90º) and (1) End-to-End Connector

HOUSING
Extruded aluminum with frosted lens.

MOUNTING
Two adjustable mounting brackets (0º - 90º) are included with each luminaire.

ELECTRICAL
Input Voltage:
120V

Lumens / Wattage:
850lm / 10W per foot

Color Temperature:
3000K, 3500K or 4000K (each luminaire includes a CCT switch)

CRI:
90+ CRI

Max Run Length:
270W max.

Dimming:
Triac or ELV (Dimmable down to 15% with Triac dimmer. ELV has best dimming performance.)

LABELS AND LISTINGS
· cULus Listed for Dry Location
· 5-Year Limited Warranty
· Certified to the high efficacy requirements of California Title 24 JA8-2019
