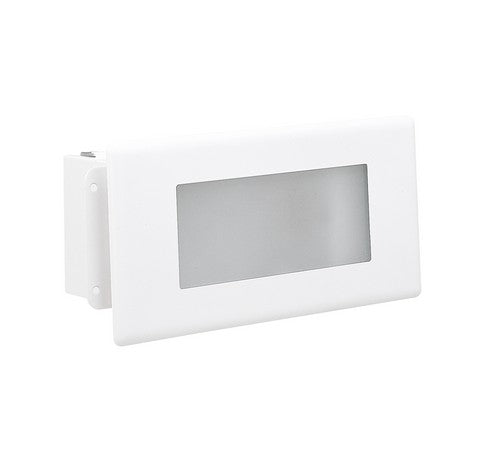

NORA Lighting NSI-602BZ

NSI-602BZ Product Description

Step light uses bright energy efficient LED light sources that provide an extraordinary 30,000-hour life and are maintenance free. LED step lights are ideal for hallways, entrances, stairways, or any application requiring a low profile recessed fixture. The light source is shielded for excellent glare control. Step light includes a tempered frosted glass face. The low profile of lens face easily complies with OSHA specifications.

FEATURES :

cULus listed for Wet Location
Neoprene Gasket Sealed
Eighteen LEDs offer a total load of only 2W
Save over 80% when compared to 10W incandescent step lights
Integrated, embedded driver
30,000 hours at 70% lumen maintenance rated life
No harmful ultra violet light, infrared wavelengths, or light leak
Heavy duty, low profile aesthetic louver trim
Internal brackets for installation hardware

SPECIFICATIONS :

Light Source : LED
Options : Wet Location
Dimensions : Face Plate: 4-3/4" x 9-1/2", Housing: 3-1/2" x 3-1/2" x 10-1/4"

LED Driver: 120VAC 50/60Hz

LED Source: 18 pieces of 0.12W (Total of 2W)

Knockouts: Three 1/2″ knockouts for easy power feed

Surface Thickness: Accept 5/8″ standard drywall thickness.

Bar Hangers: Bar hanger brackets accept bar hangers for installation to joist or stud constructions. Two pre-held mounting plate for vertical walls.

Housing: Sturdy galvanized steel construction, white powder coated housing. Side brackets for mounting to dry wall. Driver has separate compartment.

Mounting: Easily installs in a standard single gang switch box. Mounting bracket has grounding screw and mounts either horizontally or vertically in the single gang box.

Face Plate: White powder coated face plate is constructed from heavy duty 0.040” steel and four 1/8” blade louvers for a low profile appearance. Tempered frosted glass and neoprene gasket are included behind louver blades for Wet Location listing and OSHA specifications.

Electrical
Input Voltage: 120V
Lumens / Wattage: 120lm / 2W
Wiring: 18AWG, rated 105ºC 300V
Knockouts: (3) 1/2"
Color Temperature: 3000K
Dimming: Non-Dimmable

Labels and listings
cULus Listed for Wet Locations
OSHA compliant
3-Year Limited Warranty
