NORA Lighting NSERIC-407AT/20

NSERIC-407AT/20 Product Description

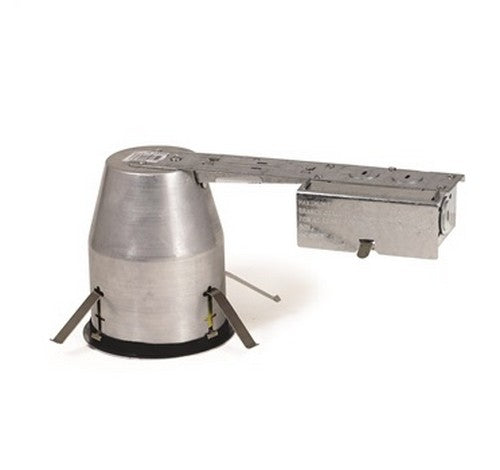

Remodel four inch housing for installation into existing sheet rock ceilings where access is only available from below the ceiling. Rated for direct contact with thermal insulation, Nora’s 4″ IC housing is quick to install, accepts a wide variety of high quality trims, and is airtight built for energy savings.

SPECIFICATIONS :

Light Source : Line Voltage
Construction Type : Remodel, Air-Tight IC
Aperture Size : 4"

Housing : Aluminum housing adjusts to a ceiling thickness from 3/8" to 1-3/8". Housing terminates at a 1/4" ceiling flange for even positioning of housing angle within the ceiling. Structural arm consists of 0.050 steel and connects to housing with j-box and ballast. Integral springs brackets provided.

Air Flow Restriction : Air tight (AT) housings have factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tigh requirements.

Socket : Line voltage GU10 socket.

Mounting : Four high tension tempered steel springs secure remodel housing to ceiling.
(Hole cutout template provided for convenience).

Junction Box : Prewired 15 cubic inch 0.060" thick galvanized steel, with six 1/2" knockouts, four Romex® pryouts, and snap on cover. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).

Lamp
20W 120V MR16 GU10 (Not Included)

ELECTRICAL
Wiring
Standard flex whip carries wire lead from junction box into housing. Wire leads extend from
housing and thermal device to 4" below housing, terminating at GU10 MR16 socket.

Thermal Protector : Standard UL thermal protector rated for 90ºC (194ºF) is affixed to the inner top surface of housing.

Labels and Listings
cULus Listed for Damp Location w/ Feed Through
cULus Wet Listed (Only with designated trims)
Meets or exceeds ASTM-283 Air-Tight Requirements
Washington State Approved
