NORA Lighting NS-401QAT

NS-401QAT Product Description

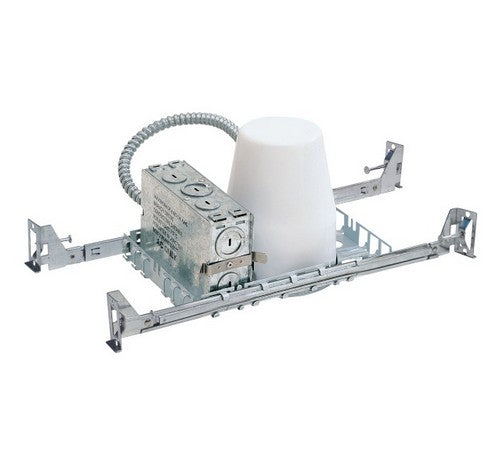

4″ Recessed housings deliver ultra-high design quality in any application with minimal apertures ideal for R/PAR20, PAR16 designer light sources. Available in both standard and energy savings airtight configurations, Nora’s 4″ products are quick to install and accept a wide variety of high quality, attractive finishing trims.

SPECIFICATIONS :

Plaster Frame : 0.040 steel frame with integral bar hanger brackets. Brackets can accommodate longer 27" accessory flat bar hangers. Brackets run along all sides of frame to allow bar hangers to be run parallel or perpendicular to junction box.

Housing : 0.035 white baked enamel one-piece drawn steel. Adjustable for ceiling thickness from 5/8" to 1-3/8".

Clearance : Non-IC housings require a minimum clearance of 3" from thermal insulation and 1/2" from adjacent building components.

Air Tight: Housing includes pre-installed gaskets to restrict airflow from room into ceiling plenum

Minimum Clearances: Non-IC housings require a minimum clearance of 3″ from thermal insulation and 1/2″ from adjacent building components

Ceiling Thickness: Ceiling thickness varies from 5/8″ – 1-3/8″

Lamp Adjustment: Adjustable socket mounting plate allows different types of lamps to be used for best possible light distribution. Socket can be removed from socket plate for adjustable trims.

Installation: Bar hangers are adjustable from 13-5/8″ to 24-1/2″ and can be repositioned 90 degrees. Bar hangers are slotted for T-bar installation and include captive nails.

Socket : Galvanized steel socket plate adjusts inside housing for optimum light performance. Contains a single medium base socket. Protective cap included to protect socket interior during ceiling painting. Socket plate can be removed in the field to convert to a floating socket.

Bar Hangers : Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.

Junction Box : Prewired 25 cubic inch 0.060" thick galvanized steel, with seven 1/2" knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).

ELECTRICAL
Wiring
Standard flex whip carries wire lead from junction box into housing. Wire leads extend from housing and thermal device to medium base socket.
Thermal Protector
Standard UL thermal protector rated for 90ºC (194ºF) is affixed to side wall surface of housing.

Maximum Wattage: 50W (actual wattage varies with trim)

Dimensions:
Length: 8-1/2″
Width: 5-5/8″
Depth: 5-3/4″
Ceiling Opening: 4-3/8″

Listing:
cULus Damp Location w/ Feed Through
cULus Wet Location (Only with designated trims)
Washington State Approved
Meets or exceeds ASTM-283 Air-Tight
