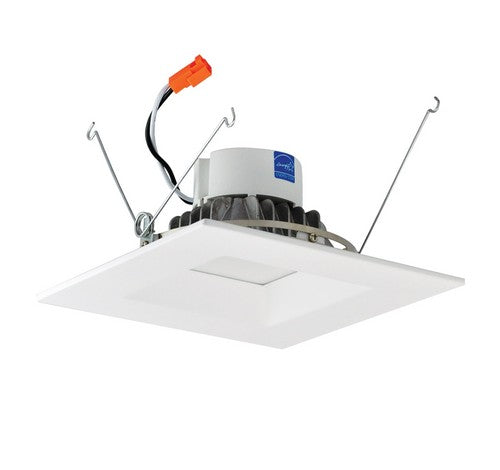

NORA Lighting NOX-636 6" Onyx Square LED Reflector With Square Aperture

2 sold in last 8 hours
NORA Lighting
customers are viewing this product
The Onyx 6" Square Series is suitable for use with most 6" recessed housings. Die-cast aluminum construction provides clean sharp edges. Deep regressed optics and square aperture delivers even and glare-free illumination.


1200lm / 17.5W or 750lm / 12W
2700K, 3000K or 4000K @ 90+ CRI
Includes medium base socket adaptor for easy retrofitting in 6" recessed housings
5-year limited warranty
ENERGY STAR certified
cULus classified for wet locations


Trim: One piece, die-cast aluminum construction dissipates heat and extends life. Unitized Thermal Management, UTM, provides exceptional cool operation.
Housings: Compatible with most 6" IC and non-IC housings by Nora and others.
Mounting: Two steel, spring mounting wires allow for easy and secure mounting in most 6" housings.
Optics: Nora specified and designed precision-molded lens for optimal lumen output and even distribution. The white polymer lens diffuser evenly distributes the light.
Voltage: 120VAC
Lumens / Wattage: (blank) = 750lm / 12W /12 = 1200lm / 17.5W
Color Temperature: 2700K, 3000K or 4000K
Dimming: 5% with electronic low voltage dimmer or
10% with 2-wire dimmer
Labels and listings
ENERGY STAR certified
cULus classified for Wet Locations
Meets ASTM-E283 Air-Tight requirements
5-Year Limited Warranty
Can be used to comply with 2016 Title 24 – part 6 High Efficacy LED light source requirements
