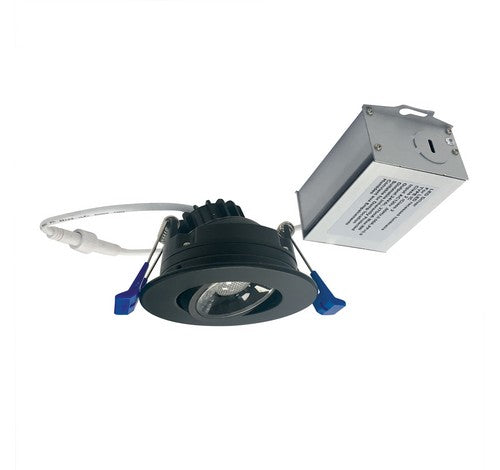

NORA Lighting NM2-2RG6027BB

NM2-2RG6027BB Product Description

M2 downlight series features quality and convenience for easy installation in new construction or remodel applications, no housing is required. M2 includes a quick connect that allows the junction box to easily disconnect and mount in the ceiling. Luminaires are available with an adjustable gimbal or fixed downlight, and produces up to 650 lumens.

FEATURES :

No housing required – IC Air-Tight rated
Easy installation for remodel or new construction applications
Deep regressed downlight with field change reflector
Adjustable Gimbal at only 2-1/2″ in height
Quick disconnect cables allow for extended lengths
400lm or 600lm LED packages
2700K or 3000K @ 90+ CRI
Triac or ELV dimming
5-year limited warranty
ENERGY STAR Certified
Can be used to comply with 2016 Title 24 Part 6 high
efficacy LED light source requirements

SPECIFICATIONS :

Construction: Die-cast aluminum trims available in black or matte powder white finish. Gimbal trim is adjustable up to 15º. Open downlight includes a reflector with the same finish as trim, optional black or haze reflector is available and field changeable.

Air Flow Restriction: Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.

Clearance: IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.

Junction Box: Pre Wired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two knockouts and snap on cover with 7” connector length.

Mounting: No housing is required, two tensions steel spring clips secure luminaire to ceiling. New construction frame-in kit is available, see accessories.

ELECTRICAL
Input Voltage: 120V
Lumens / Wattage: 40 = 400lm / 6W; 60 = 600lm / 8W
Color Temperature: 2700K or 3000K
CRI: 90+CRI
Beam Spread: 38º Flood
Dimming: Triac or ELV

LABELS AND LISTINGS
cETLus Listed for Damp Locations
ENERGY STAR certified
5-Year Limited Warranty
FCC compliant
Can be used to comply with 2016 Title 24 - part 6 High
Efficacy LED light source requirements
