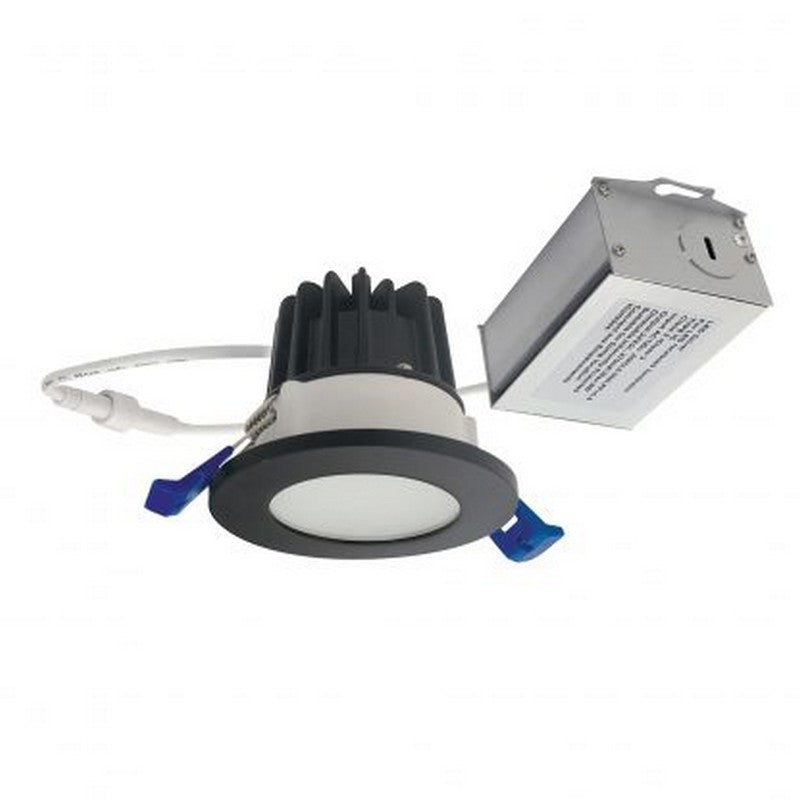

Nora Lighting NM2-2RDCS4027BB

NM2-2RDCS4027BB Product Description

M2 downlight series features quality and convenience with easy installation for insulated or non-insulated applications.

FEATURES :

· No housing required - IC Air-Tight rated
· Easy installation for remodel or new construction applications
· Quick disconnect allows for extended lengths
· 400lm, 600lm or 850lm LED packages
· 2700K or 3000K @ 90+ CRI
· Triac or ELV dimming
· 5-year limited warranty
· cETLus Listed for Wet Locations

SPECIFICATIONS :

Construction:
Die-cast aluminum trims available in matte black or matte powder white finish. Frosted lens included with matching reflector finish as trim.

Air Flow Restriction:
Luminaire has factory installed gasket to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.

Clearance:
IC rated luminaires are rated for direct contact with insulation (not spray foam insulation), no minimum clearance is required.

Junction Box:
Prewired junction box includes quick connect to LED fixtures for ease of installation. Junction box includes two (400lm/600lm) or four (850lm) 1/2" trade size knockouts and snap on cover with 7” quick connect wire. Luminaire includes 5” (400lm/600lm) or 4” (850lm) quick connect wire.

Mounting:
No housing is required, two tensions steel spring clips secure luminaire to ceiling. Accommodates ceiling thickness up to 3/4". New construction frame-in kit is available, see accessories.

ELECTRICAL
Input Voltage:
120V

Delivered Lumens / Wattage:
40 = 450lm / 6W; 60 = 500lm / 8W; 85 = 725lm/ 10W

Color Temperature:
2700K or 3000K

CRI:
90+CRI

Beam Spread:
44° Flood

Operating Temperature:
40 & 60 = 0°C to 40°C ambient temperature; 85 = 0°C to 25°C ambient temperature

Lifetime:
60,000 hours @ L70

Dimming:
Dimmable down to 10% with Triac or ELV
