NORA Lighting NLR-604/75/1EL

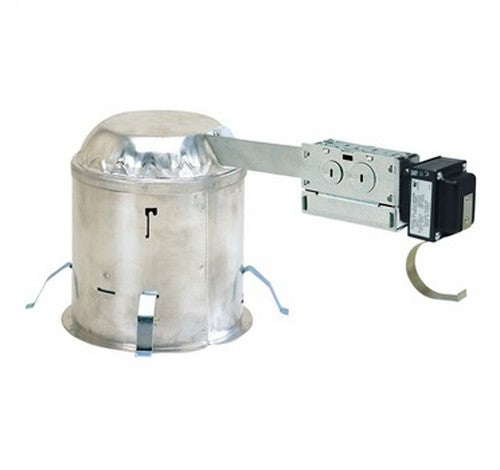

NLR-604/75/1EL Product Description

Six emodel three inch housing for installation into existing sheet rock ceilings where access is only available from below the ceiling. For use in non-insulated ceilings, where insulation can be kept 3" from fixtures. Rated for use with a low voltage MR16 or AR111 lamp.

SPECIFICATIONS :

CONSTRUCTION
Housing : 0.050 enamel one-piece drawn aluminum housing adjusts to a ceiling thickness from 5/8" to 1-3/8". Housing terminates at a 1/4" ceiling flange for even positioning of housing angle within the ceiling. Structural arm consists of 0.050 steel and connects to housing with j-box and transformer. Integral springs brackets provided.

Clearance : Non-IC housings require a minimum clearance of 3" from thermal insulation and 1/2" from adjacent building components.

Socket : Low voltage bi-pin socket with heat shield. (AR111/PAR38 socket is included with trim)

Mounting : Four high tension tempered steel springs secure remodel housing to ceiling. (Hole cutout template provided for convenience).

Junction Box : Prewired 15 cubic inch 0.060" thick galvanized steel, with six 1/2" knockouts, four Romex® pryouts, and snap on cover. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).

Lamp
20W-75W 12V MR16 (lamp and wattage varies with trim - ordered separately)
50W 12V AR111 (lamp and wattage varies with trim - ordered separately)
50W 12V PAR36 (lamp and wattage varies with trim - ordered separately)

TRANSFORMER
Magnetic: Thermally protected, single tap input voltage available in 120V 60Hz or 277V 60Hz. Class H, available in 50 Watts or 75 Watts maximum.
Electronic: Thermally protected, single tap input voltage available in 120V 60Hz or 277V 50/60Hz with short circuit protection. Available in 50 Watts or 75 Watts maximum.

DIMMING
Use magnetic low voltage dimming control with magnetic transformer or electronic low voltage dimming control with electronic transformer.
Optional Accessories: NRA-36: Replacement 12V MR16 socket with heat shield

Labels and Listings
cULus Listed for Damp Location w/ Feed Through
cULus Wet Listed (Only with designated trims)
