NORA Lighting NLR-403S

NLR-403S Product Description

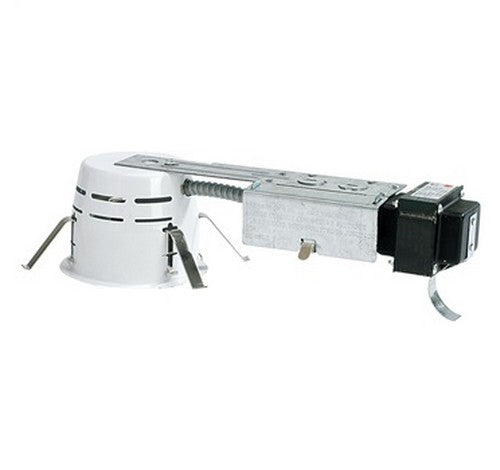

4” Shallow low voltage remodel housing for installation into existing sheet rock ceilings where access is only available from below the ceiling. A wide variety of attractive adjustable trims allows fine-tuned aiming of direction light sources.


Housing: 0.035 white baked enamel one-piece drawn steel. Housing terminates at a 1/4” ceiling flange for even positioning of housing angle within the ceiling. Structural arm consists of 0.05 steel and connects to housing with junction box.

Mounting: Four high tension tempered steel springs secure remodel housing to ceiling thicknesses up to 7/8” (Hole cutout template provided for convenience).

Clearance: Non-Insulated housings require a minimum clearance of 3” from thermal insulation and 1/2” from adjacent building components.

Junction Box: Prewired 22 cubic inch 0.06" thick galvanized steel, with six 3/4" knockouts and four Romex pryouts and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).

Input Voltage: 120V or 277V (must specify)
Output Voltage: 12V
Socket: Bi-Pin GU5.3 socket with heat shield
Wattage: 20W-50W (must specify)
Lamp: 12V MR16 (not inlcuded)
Dimming: MLV (with Magnetic Transformer) or ELV (with
Electronic Transformer)

Labels and listings
cULus Listed for Damp Location
(wet location when used with compatible reflectors)
