NORA Lighting NL-401QAT

NL-401QAT Product Description

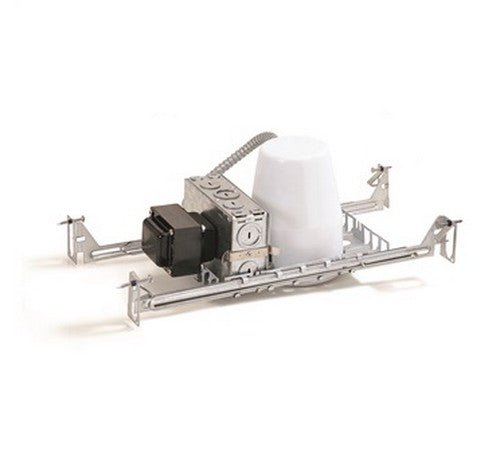

4” low voltage new construction housing provides crisp, defined MR16 quartz halogen illumination to any insulated ceiling application. The small profile of this series provides easy installation to any joist or steel stud construction. A wide variety of attractive adjustable trims allows fine tuned aiming of direction light sources.

SPECIFICATIONS :

CONSTRUCTION
Plaster Frame: 0.040 steel frame with integral bar hanger brackets. Brackets can accommodate longer 27” accessory flat bar hangers.

Housing: 0.035 white baked enamel one-piece drawn steel. Adjustable for ceiling thickness up to 1-1/4”.

Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283
Air-Tight requirements.
Note: 75W housings are not Air-Tight rated

Clearance: Non-IC housings require a minimum clearance of 3" from thermal insulation and 1/2" from combustible material from above the fixture.

Bar Hangers: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.

Junction Box: Prewired 22 cubic inch 0.06" thick galvanized steel, with seven 1/2" knockouts and four Romex pryouts and snap on covers for 50W housings. 75W housings include four 1/2" knockouts and two double knockouts (3/4" or 1/2"). All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).

ELECTRICAL
Input Voltage: 120V or 277V (must specify)
Output Voltage: 12V
Socket: Bi-Pin GU5.3 socket with heat shield
Wattage: 20W-75W (must specify)
Lamp: 12V MR16 (not included)
Dimming: MLV (with Magnetic Transformer) or ELV (with Electronic Transformer)

LABELS AND LISTINGS
cULus Listed for Damp Location (wet location when used with compatible reflectors)
Meets or exceeds ASTM-283 Air-Tight requirements (AT only)
