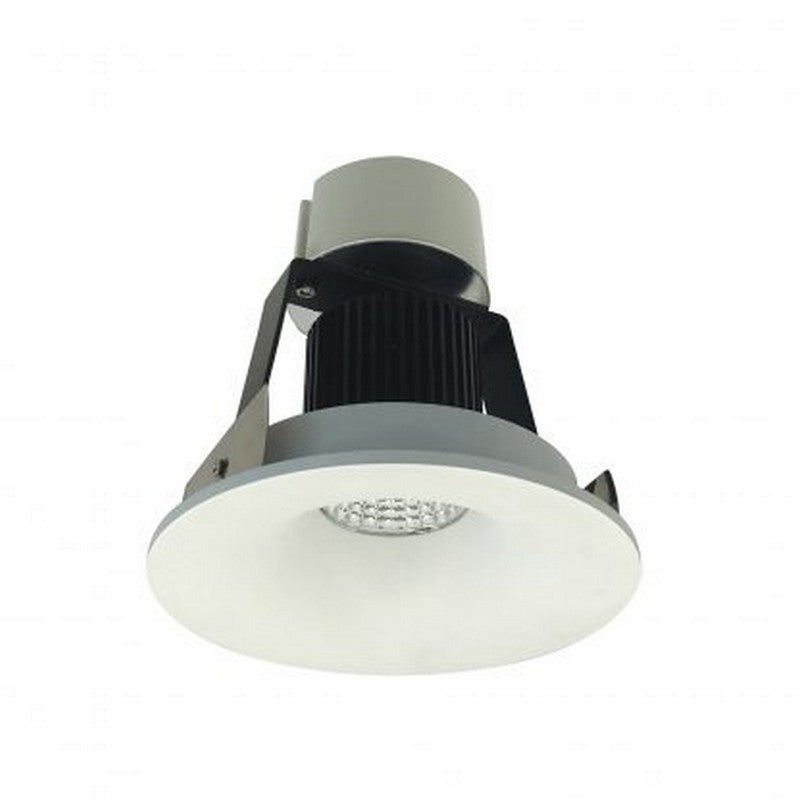

Nora Lighting NIR-4RNBCDXWW 4 Inch Iolite Retrofit Round Bullnose Reflector

2 sold in last 8 hours

NIR-4RNBCDXWW

$145.17 $114.68
$114.68
customers are viewing this product

Nora Lighting NIR-4RNBCDXWW

NIR-4RNBCDXWW Product Description

4" Iolite retrofit reflectors can be specified for use in new construction or remodel applications. The die-cast aluminum reflectors are available in square and round designs, with sharp and clean edges. Reflectors ships with a 60˚ optic installed, 25˚ and 38˚ optics are included and can be easily changed in the field. The reflectors produce 800lm or 1000lm output at 90+ CRI, utilizing 12W.

FEATURES:

· Retrofit existing 4" recessed housings
· Cree® LED COB or Comfort Dim Technology
· 2700K, 3000K, 3500K, 4000K or 5000K @ 90+ CRI
· 60° (Flood) optic installed, 38° (Narrow flood) and 25°
(Spot) optics included
· 5-Year limited warranty

SPECIFICATIONS:

Construction:
Reflectors are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the reflector and transfer heat.

Reflectors:
NIR-4RG / NIR-4SG:
Adjustable surface gimbals adjusts up to 40º (varies by housing).
NIR-4RC / NIR-4SC:
Regressed cone reflectors optimize visual cut-off and adjust up to 40º (varies by housing).
NIR-4RNB / NIR-4SNB:
Bullnose reflector with a filleted aperture which allows for minimal aperture brightness.

Mounting:
Reflector includes friction blades to mount securely in most 4" housings.

Field Changeable Optics:
Each reflector comes with a 60º (installed), 38º and 25º optics (included). Premium TIR optics are also available in 15º or 25º, see page 2.

Retrofit:
Iolite retrofit series includes medium base screwsocket adapter (NRA-211SM) for retrofitting into existing medium base downlight housings. GU24 socket adapter is available for use with GU24 housings, must specify NRA-212SM.

ELECTRICAL
Lumens / Wattage: 800lm / 12W or 1000lm / 12W

Color Temperature:
2700K, 3000K, 3500K, 4000K, 5000K

CRI:
90+CRI

Operating Temp.:
0˚C to 40˚C ambient temperature

Lifetime:
50,000 hours @ L70

Comfort Dim:
Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.

Dimming:
Triac or ELV

About Nora Lighting:

After stepping into the lighting game just a little over 20 years ago, Nora lighting has sprinted its way to the top of light fixture suppliers. With a team of the most hip design experts and engineering technologies Nora lights can add a modern, yet dependable edge to your home, job, or college dorm. Nora track lighting and recessed lighting are amongst the best available. So why not play it stylish and smart and go with Nora lighting?
