NORA Lighting NIO-4SC40XMPW/10

NIO-4SC40XMPW/10 Product Description

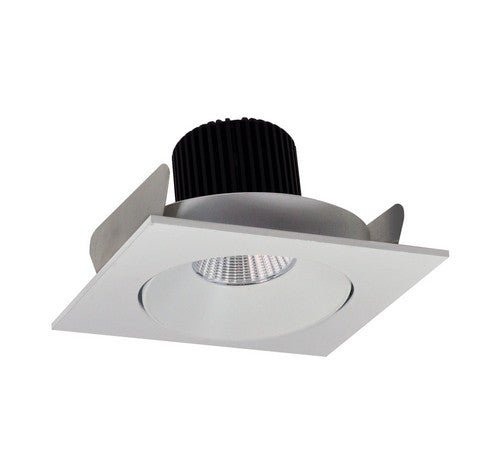

4" Iolite reflectors can be specified for use in new construction or remodel applications. The die-cast aluminum reflectors are available in square and round designs, with sharp and clean edges. Reflectors ship with a 60˚ optic installed, 25˚ and 38˚ optics are included and can be easily changed in the field. The reflectors produce 800 or 1000 lumen output at 90+ CRI, utilizing 14W.

FEATURES:

Cree® LED COB or Comfort Dim Technology
Wide variety of reflectors and finishes
60° (Flood) optic installed, 38° (Narrow flood) and
25° (Spot) optics included
5-Year limited warranty

SPECIFICATIONS:

CONSTRUCTION
Reflectors are constructed of heat dissipating, die-cast aluminum. The aluminum die-cast LED heat sink is threaded to fit the trim and transfer heat.
Mounting: Reflector includes friction blades to mount securely to housing.
Field Changeable Optics: Each reflector comes with a 60º (installed), 38º and 25º optics (included). Premium TIR optics are also available in 15º or 25º.
Electrical
Lumens / Wattage:
800lm / 14W (New Construction or Remodel Housing)
1000lm / 14W (New Construction Housing only)
Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K
CRI: 90+
Operating Temp.: 0˚C to 40˚C ambient temperature
Comfort Dim: Comfort Dim color tunes the temperature from a bright 3100K, to a romantic and comfortable 2000K on a gradual, even curve. Available in 800lm only.
Dimming: Specified by housing.
Accessories: Reflectors will accommodate (1) hex louver and (1) translucent deco collar or opaque snoot, no accessory holder is required, see page 2. Flush mount mud ring is available to give the appearance of a trimless reflector, compatible with new construction housing only.
Listings and WARRANTY
cULus Listed for Wet Location (NIO-4RD and NIO-4SD are rated for damp location)
ENERGY STAR® certified
5 Year Limited Warranty
RoHS Compliant
Can be used to comply with 2016 Title 24 – part 6
High Efficacy LED light source requirements
