Nora lighting NHSIC-412LE4LT 16W 4" Cobalt Shallow, IC Air-Tight New Construction Housing 120-277V 120-277V Input; 0-10V dimming / Cobalt

2 sold in last 8 hours

NHSIC-412LE4LT

$112.80 $101.52
$101.52
customers are viewing this product

NORA Lighting NHSIC-412LE4LT

NHSIC-412LE4LT Product Description

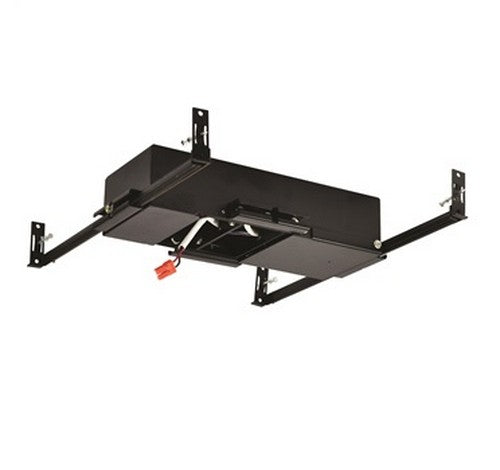

Shallow specification grade new construction housing that is only 2-5/8” tall. The housing is ideal for multi-family and residential applications. The driver is completely accessible from below the ceiling with a patent pending design.

FEATURES :

Patent Pending Design
Shallow 2-5/8” height
Complete access to driver from below
Adjustable collar for up to 1-1/2” ceiling thickness
5-Year limited warranty
ENERGY STAR certified
cULus listed for wet locations

SPECIFICATIONS :

CONSTRUCTION
Housing: 0.04” steel housing with two inner boxes adjusts from 3/8” to a maximum ceiling thickness of 1-1/2”. Heavy gauge welded steel suitable for contact with insulation. Meets ASTM-283 Air Tight requirements. Housing contains patent pending movable driver compartment for easy access to driver after installation. Fixture compartment contains quick connect for dedicated Cobalt trims. Spring brackets accept torsion wing trim springs.

Bar Hangers: Two 13-3/4” to 24-1/2” heavy duty adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist.

Junction Box: Prewired 25 cubic inch 0.075” thick galvanized steel, with four .88” Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the wiring compartment, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).

ELECTRICAL
Input Voltage: 120V or 120-277V (must specify)
Wattage: 13W, 16W or 22W
Operating Temp.: 0˚C to 25˚C ambient temperature
Dimming: Triac, ELV or 0-10V dimming (must specify)

LABELS AND LISTINGS
cULus Listed for Damp Location (wet location when used with compatible reflector)
Meets or exceeds ASTM-283 Air-Tight Requirements
ENERGY STAR certified (850lm & 1250lm only)
Can be used to comply with 2016 Title 24 – part 6 High Efficacy LED light source requirements
5-Year Limited Warranty
