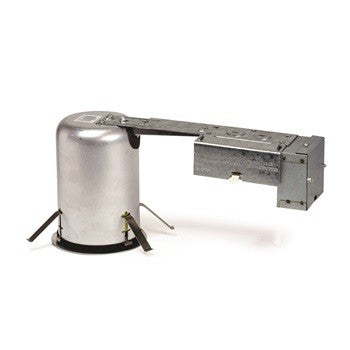

Nora Lighting NHRIOIC-48LE3A

NHRIOIC-48LE3A Product Description

Dedicated LED Remodel housing for 4″ Iolite reflectors. Remodel housing is rated for use in insulated ceilings and can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling.

FEATURES :

· IC rated for direct contact with insulation**
· Quick connect provided for electrical connection to the LED reflector
· ASTM E283 for Air-Tight
· Dimming down to 5%

SPECIFICATION :

SPECIFICATION
Housing:
0.030 steel can connects to integrated 0.040 steel structural arm with junction box and driver compartment. Integral spring brackets provided.

Air Flow Restriction:
Housing has factory installed gaskets to restrict airflow from room into ceiling plenum
to <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.

Clearance**:
“IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.

Mounting:
Four high-tension tempered steel springs secure remodel housing from 1/4” (min) to 5/8” (max) thick ceiling. Hole cutout template provided for convenience.

Junction Box:
Pre-wired 25 cubic inch 0.064” thick galvanized steel, with five 1/2”, two 3/4” knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
