NORA Lighting NHRIOIC-48LE4

NHRIOIC-48LE4 Product Description

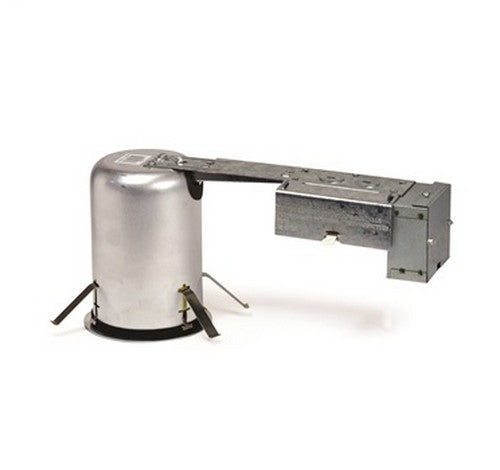

Dedicated remodel housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling

FEATURES :

IC rated for direct contact with insulation
Quick connect provided for electrical connection to the LED reflector
ASTM E283 for Air-Tight
Dimming down to 5%


SPECIFICATIONS :

Housing: 0.030 steel can connects to integrated 0.040 steel structural arm with junction box and driver compartment. Integral spring brackets provided.

Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM E283 Air-Tight requirements.

Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.

Mounting: Four high-tension tempered steel springs secure remodel housing from 1/4” (min) to 5/8” (max) thick ceiling. Hole cutout template provided for convenience.

Junction Box: Pre-wired 25 cubic inch 0.064” thick galvanized steel, with five 1/2”, two 3/4” knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).

ELECTRICAL
Voltage: 120/277V (must specify)
Power Factor: >0.90
Operating Temp.: 104˚F (40ºC) max. ambient temperature
Wattage: 14W
Dimming: Triac / ELV or 0-10V (must specify)

LABELS AND LISTINGS
cULus Listed for Damp Location
cULus Listed for Wet Location (w/designated reflectors)
5-Year Limited Warranty
RoHS Compliant
Meets or exceeds ASTM-283 Air-Tight requirements
