NORA Lighting NHRIC-6LMRAT

NHRIC-6LMRAT Product Description

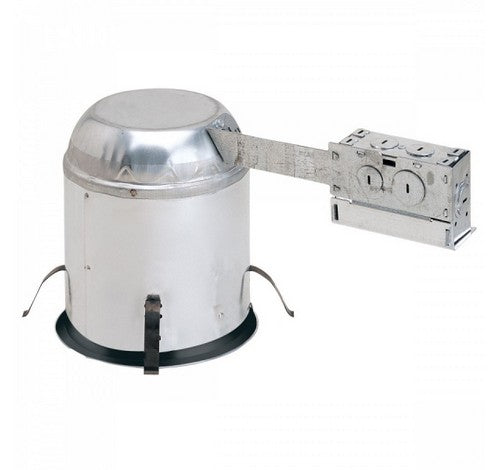

6″ IC Air-Tight Dedicated Remodel housings are designed for use with all 6″ Nora Lighting LED retrofit luminares. IC housings are high quality, light weight units ideal for use in insulated ceilings. Airtight construction reduces energy costs by reducing the amount of air escaping through the ceiling. Rated for direct contact with insulation and combustive materials, Nora Remodel IC housings install into existing drywall or wood ceilings with no above access.

SPECIFICATIONS :

Family : Cobalt, Marquise I, Marquise II, Onyx, Opal, PRISM
Light Source : LED, Comfort Dim
Lumen Output : 0-900lm, 1000-1900lm
Aperture Size : 6"
Construction Type : Remodel, Air-Tight IC

Minimum Clearances: “IC” Housings are direct contact rated; no minimum clearance is required

Ceiling Thickness: Housing adjusts from 3/8″ – 1-3/8″ to accommodate various ceiling thicknesses.

Installation: High tension tempered steel springs secure remodel housings evenly to ceiling; hole cutout template provided for convenience.

Junction Box: Junction box is listed for through branch circuit wiring and contains five 1/2″ and two 3/4″ knockouts and four ROMEX® pryouts with strain relief

Emergency Option: 90 minute battery back-up must be ordered and installed as a self contained kit set apart from the housing

Electrical: Quick Connector provided

Compatible LED Diamond Trims: NLEDC-6 , NLCBC2-6 , NLCBC-56, NOX-56, NLOP-56 series

Dimensions:
Length: 13-3/4″
Width: 6-3/4″
Depth: 7-1/2″
Ceiling Opening: 6-3/8″

Listing:
cULus Listed for Damp Location w/ Feed Through
cULus Listed for Wet Location w/ Feed Through when used with NLEDC-67x Series
WSEC ASTM E283 for Air-Tight
Energy Star Rated
RoHS Compliant
Conforms to IESNA LM-79 and LM-80
Energy Star Rated
