NORA Lighting NHRIC-4LMRAT

NHRIC-4LMRAT Product Description

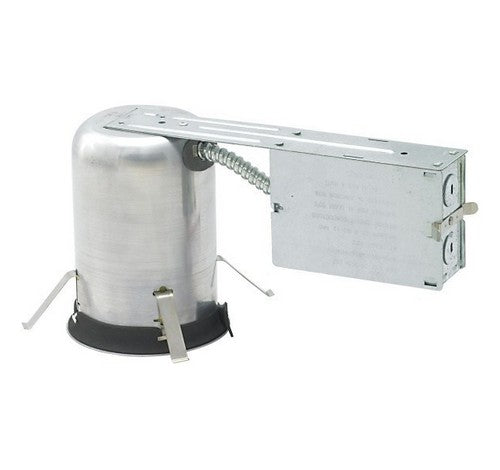

DDedicated remodel housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with PRISM, Cobalt, Marquise, Onyx series LED fixtures.

FEATURES:

IC rated for direct contact with insulation
Quick connect provided for electrical connection to the LED trim
ASTM E283 for Air-Tight
Available with 277V Step-down transformer

SPECIFICATIONS:

Housing: 0.040 aluminum housing adjusts to a maximum ceiling thickness of 5/8" (16mm). Housing terminates at a 1/4" ceiling flange for even positioning of housing angle within the ceiling. Structural arm consists of 0.050 steel and connects to housing with junction box. Integral spring brackets provided.
Air Flow Restriction: Meets requirements of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Mounting: Four high tension tempered steel springs secure remodel housing to 5/8" thick (max.) ceiling (Hole cutout template provided for convenience)
Junction Box: P rewired 25 cubic inch 0.064" thick galvanized steel, with five 1/2", two 3/4" knockouts, four Romex® payouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
Step down transformer
(Converts 277V input to 120V) Optional 50W step down transformer installed (NHRIC-4LMRAT/277)
EMERGENCY (NEPK-BSL17C-C2U)
Remote 90-minute battery back-up and remote test switch can be specified and installed separately.
ELECTRICAL
Voltage: 120V or 120/277V
Operating Temp.: 122˚F (50˚C) max. ambient temp.
Dimming: Triac / ELV or 0-10V Dimming, as specified on reflector / housing combination.
LABELS AND LISTINGS
cULus Listed for Damp location & feed through (Suitable for wet location with applicable reflector)
Can be used to comply with 2016 Title 24 - part 6 High Efficacy LED light source requirements when used with compatible reflector
WSEC ASTM E283 for Air-Tight
RoHS Compliant
