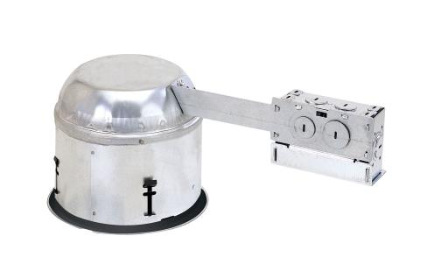

Nora Lighting NHRIC-427LMRAT/277 4" Shallow IC AT LED Dedicated Remodel Housing, Voltage 277V w/ 50W Step Down Transformer
NHRIC-427LMRAT/277
NORA Lighting NHRIC-427LMRAT/277
NHRIC-427LMRAT/277 Product Description
Dedicated remodel housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with LED retrofit luminaires.
Features:
Shallow IC rated housing for direct contact with insulation
Quick connect provided for electrical connection to the LED downlight
IC Air-Tight energy saving by reducing the flow of air through the ceiling
cULus listed for damp location and through branch circuit wiring
Technical Details:
Housing: 0.040 steel housing is connected to 0.050 steem arm with junction box.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Mounting: Four high tension springs secure the housing to an existing sheet rock ceiling. Accommodates ceiling thicknesses from 5/8" to 3/4".
Junction Box: Prewired 25 cubic inch 0.064"’ thick galvanized steel with six 1/2" trade size knockouts, one 3/4" trade size knockout, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Maximum of 6 no. 12 AWG through branch circuit conductors suitable for at least 90°C permitted in junction box.
